8-Kanal-Signaltrenner der Serie 483C

Bei den Signalkonditionierern der Serie 483C handelt es sich um 8-Kanal-Geräte zur Rackmontage, die eine Vielzahl von Sensortypen versorgen können. Die Serie umfasst sowohl einfache Stand-alone-Geräte als auch Geräte mit höherer Funktionalität. Eingangsfehler- und Überlast-LED-Anzeigen befinden sich bei allen Modellen auf der Frontplatte. Die Merkmale der einzelnen Modelle sind unten aufgeführt.

Basic ICP® Signalwandler

Modell 483C05

Sensor-Eingangstyp: ICP®

Merkmale:

  • Einstellbarer ICP®-Strom
  • Einheitliche Verstärkung
  • Gebrauchsfertige Funktionalität

Modell 483C15

Sensor-Eingangstyp: ICP®, Spannung

Merkmale:

  • x1, x10, x100 über Jumper wählbare Verstärkung
  • Einstellbarer ICP®-Strom
  • Optionale Eingangsfilterung

Erweiterte ICP®-Signalkonditionierer

Modell 483C50

Sensor-Eingangstyp: ICP®, Spannung

Merkmale:

  • Inkrementale Spannungsverstärkung: x,1 bis x200
  • Ethernet-Anschluss für Computersteuerung
  • Optionale Eingangs-/Ausgangsfilterung
  • Unterstützung von TEDS-Sensoren

Modelle 483C30, 483C40

Modell 483C41

Dualmodus-Ladungssignalaufbereiter

Modell 483C30

Sensor-Eingangstyp: Ladung, ICP®, Spannung

Merkmale:

  • Ladungsumwandlung: .1, 1, 10 mV/pC
  • Inkrementale Spannungsverstärkung: x.1 bis x200
  • Wählbare Isolierung der Eingangserde
  • Internes Kalibrierungssignal für End-to-End-Tests des Ausgangskabels zum Datenerfassungssystem
  • Ethernet-Anschluss für Computersteuerung
  • 10 kHz Tiefpass-Ausgangsfilter
  • Unterstützung von TEDS-Sensoren

Modell 483C40

Sensor-Eingangstyp: Ladung, ICP®, Spannung

Merkmale:

  • Ladungsumwandlung: .01 bis 2000 mV/pC
  • Inkrementale Spannungsverstärkung: x,1 bis x200
  • Ethernet-Anschluss für Computersteuerung
  • Wählbarer Tiefpass-Eingangsfilter
  • Unterstützung von TEDS-Sensoren

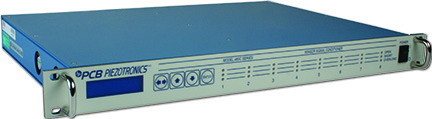

Modell 483C41

Sensor-Eingangstyp: Ladung, ICP®, Spannung

Merkmale:

  • Ladungsumwandlung: .01 bis 2000 mV/pC
  • Inkrementale Spannungsverstärkung: x,1 bis x200
  • Tastatur/Anzeige auf der Vorderseite
  • Ethernet-Anschluss für Computersteuerung
  • Wählbarer Tiefpass-Eingangsfilter
  • Unterstützung von TEDS-Sensoren

Dual-Mode-Brücken-Signalaufbereiter

Modell 483C28

Sensor-Eingangstyp: Brücke/Differential, ICP®, Spannung

Merkmale:

  • AC/DC-Kopplung
  • Automatischer Abgleich & automatischer Nullabgleich
  • Inkrementelle Verstärkung
    • x.1 bis x200 (ICP®/Volt.)
    • x.1 bis x2000 (Brdg./Diff.)
  • Ethernet-Anschluss für Computersteuerung
  • Optionale Eingangs-/Ausgangsfilterung
  • Unterstützung von TEDS-Sensoren

Basic ICP® Signal Conditioners

Model 483C05

Sensor input type: ICP®

Features:

  • Adjustable ICP® current
  • Unity gain
  • Ready to use functionality

Model 483C15

Sensor input type: ICP®, Voltage

Features:

  • x1, x10, x100 jumper selectable gain
  • Adjustable ICP® current
  • Optional input filtering

Advanced ICP® Signal Conditioners

Model 483C50

Sensor input type: ICP®, Voltage

Features:

  • Incremental voltage gain: x.1 to x200
  • Ethernet port for computer control
  • Optional input/output filtering
  • TEDS sensor support

Models 483C30, 483C40

Model 483C41

Dual Mode Charge Signal Conditioners

Model 483C30

Sensor input type: Charge, ICP®, Voltage

Features:

  • Charge conversion: .1, 1, 10 mV/pC
  • Incremental voltage gain: x.1 to x200
  • Selectable input ground isolation
  • Internal calibration signal for end-to-end testing of output cable to data aquisition system
  • Ethernet port for computer control
  • 10 kHz low pass output filter
  • TEDS sensor support

Model 483C40

Sensor input type: Charge, ICP®, Voltage

Features:

  • Charge conversion: .01 to 2000 mV/pC
  • Incremental voltage gain: x.1 to x200
  • Ethernet port for computer control
  • Selectable low pass input filter
  • TEDS sensor support

Model 483C41

Sensor input type: Charge, ICP®, Voltage

Features:

  • Charge conversion: .01 to 2000 mV/pC
  • Incremental voltage gain: x.1 to x200
  • Front panel keypad/display
  • Ethernet port for computer control
  • Selectable low pass input filter
  • TEDS sensor support

Dual Mode Bridge Signal Conditioner

Model 483C28

Sensor input type: Bridge/Differential, ICP®, Voltage

Features:

  • AC/DC coupling
  • Auto balance & Auto zero
  • Incremental gain
    • x.1 to x200 (ICP®/Volt.)
    • x.1 to x2000 (Brdg./Diff.)
  • Ethernet port for computer control
  • Optional input/output filtering
  • TEDS sensor support
Compare selected models ()
[ clear compare ]
Mouse Over Image for Product Description.
Model Number

Model:483C05

  • Sensor Input Type(s): ICP®
  • Sensor Input Type(s): ICP®
  • Channels: 8
  • Channels: 8
  • Power Required: AC Power
  • Power Required: AC Power
$1920,00 USD
(Pricing valid in US only)
DatasheetAdd to Cart

Add this product to my product comparison

Model Number

Model:483C15

  • Sensor Input Type(s): ICP®, Voltage
  • Sensor Input Type(s): ICP®, Voltage
  • Channels: 8
  • Channels: 8
  • Voltage Gain: (at 500 Hz)(±1%)x1, x10, x100
  • Voltage Gain: (at 500 Hz)(±1%)x1, x10, x100
  • Power Required: AC Power
  • Power Required: AC Power
$2584,00 USD
(Pricing valid in US only)
DatasheetAdd to Cart

Add this product to my product comparison

Model Number

Model:483C28

  • Frequency Range: (≥100 Gain)(-5%)0.05 to 50000 Hz
  • Frequency Range: (≥100 Gain)(-5%)0.05 to 50000 Hz
Add to cart for quote
DatasheetAdd to Cart

Add this product to my product comparison

Model Number
Add to cart for quote
DatasheetAdd to Cart

Add this product to my product comparison

Model Number

Model:483C40

  • Sensor Input Type(s): ICP®, Voltage, Charge
  • Sensor Input Type(s): ICP®, Voltage, Charge
  • Channels: 8
  • Channels: 8
  • TEDS Sensor Support: Yes
  • TEDS Sensor Support: Yes
  • Power Required: (direct input to unit)AC Power
  • Power Required: (direct input to unit)AC Power
Add to cart for quote
DatasheetAdd to Cart

Add this product to my product comparison

Model Number

Model:483C41

  • Sensor Input Type(s): ICP®, Voltage, Charge
  • Sensor Input Type(s): ICP®, Voltage, Charge
  • Channels: 8
  • Channels: 8
  • TEDS Sensor Support: Yes
  • TEDS Sensor Support: Yes
  • Power Required: (direct input to unit)AC Power
  • Power Required: (direct input to unit)AC Power
$11330,00 USD
(Pricing valid in US only)
DatasheetAdd to Cart

Add this product to my product comparison

Model Number

Model:483C50

  • Sensor Input Type(s): ICP®, Voltage
  • Sensor Input Type(s): ICP®, Voltage
  • Channels: 8
  • Channels: 8
  • Voltage Gain: x0.1 to x200
  • Voltage Gain: x0.1 to x200
  • TEDS Sensor Support: Yes
  • TEDS Sensor Support: Yes
  • Power Required: (direct input to unit)AC Power
  • Power Required: (direct input to unit)AC Power
Add to cart for quote
DatasheetAdd to Cart

Add this product to my product comparison
