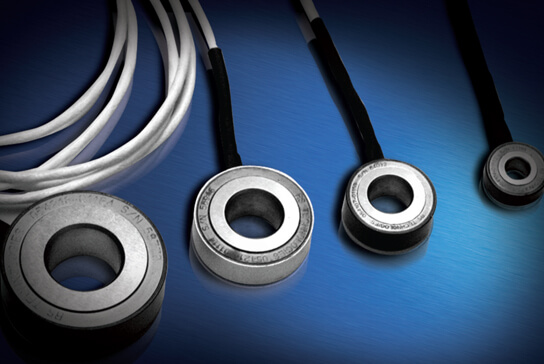

Force Washer Transducer

Model:054103-01252

• Measurement Range: (Full Scale Capacity)2500 lb
• Measurement Range: (Full Scale Capacity)11.1 kN
• Sensitivity: (output at rated capacity)1.50 mV/V
• Sensitivity: (output at rated capacity)1.50 mV/V
• Size - Diameter: .625 in
• Size - Diameter: 15.88 mm
• Size - Height: 0.255 in
• Size - Height: 6.48 mm

Model:054104-01502

• Measurement Range: (Full Scale Capacity)5000 lb
• Measurement Range: (Full Scale Capacity)22.24 kN
• Sensitivity: (output at rated capacity)1.50 mV/V
• Sensitivity: (output at rated capacity)1.50 mV/V
• Size - Diameter: .674 in
• Size - Diameter: 17.12 mm
• Size - Height: 0.255 in
• Size - Height: 6.48 mm

Model:054105-01802

• Measurement Range: (Full Scale Capacity)8000 lb
• Measurement Range: (Full Scale Capacity)35.6 kN
• Sensitivity: (output at rated capacity)1.50 mV/V
• Sensitivity: (output at rated capacity)1.50 mV/V
• Size - Diameter: 0.809 in
• Size - Diameter: 20.5 mm
• Size - Height: 0.317 in
• Size - Height: 8.05 mm

Model:054106-01103

• Measurement Range: (Full Scale Capacity)10000 lb
• Measurement Range: (Full Scale Capacity)44.5 kN
• Sensitivity: (output at rated capacity)1.50 mV/V
• Sensitivity: (output at rated capacity)1.50 mV/V
• Size - Diameter: 0.842 in
• Size - Diameter: 21.37 mm
• Size - Height: 0.38 in
• Size - Height: 9.65 mm

Model:054107-01153

• Measurement Range: (Full Scale Capacity)15000 lb
• Measurement Range: (Full Scale Capacity)66.7 kN
• Sensitivity: (output at rated capacity)1.50 mV/V
• Sensitivity: (output at rated capacity)1.50 mV/V
• Size - Diameter: 0.943 in
• Size - Diameter: 23.9 mm
• Size - Height: 0.42 in
• Size - Height: 10.7 mm

Model:054108-01203

• Measurement Range: (Full Scale Capacity)20000 lb
• Measurement Range: (Full Scale Capacity)89.0 kN
• Sensitivity: (output at rated capacity)1.50 mV/V
• Sensitivity: (output at rated capacity)1.50 mV/V
• Size - Diameter: 1.111 in
• Size - Diameter: 28.22 mm
• Size - Height: 0.455 in
• Size - Height: 11.56 mm

Model:054109-01253

• Measurement Range: (Full Scale Capacity)25000 lb
• Measurement Range: (Full Scale Capacity)111.2 kN
• Sensitivity: (output at rated capacity)1.50 mV/V
• Sensitivity: (output at rated capacity)1.50 mV/V
• Size - Diameter: 1.213 in
• Size - Diameter: 30.81 mm
• Size - Height: 0.495 in
• Size - Height: 12.57 mm

Model:054110-01303

• Measurement Range: (Full Scale Capacity)30000 lb
• Measurement Range: (Full Scale Capacity)133.40 kN
• Sensitivity: (output at rated capacity)1.50 mV/V
• Sensitivity: (output at rated capacity)1.50 mV/V
• Size - Diameter: 1.350 in
• Size - Diameter: 34.29 mm
• Size - Height: 0.525 in
• Size - Height: 13.34 mm

Model:054112-01403

• Measurement Range: (Full Scale Capacity)40000 lb
• Measurement Range: (Full Scale Capacity)177.90 kN
• Sensitivity: (output at rated capacity)1.50 mV/V
• Sensitivity: (output at rated capacity)1.50 mV/V
• Size - Diameter: 1.620 in
• Size - Diameter: 41.15 mm
• Size - Height: 0.595 in
• Size - Height: 15.11 mm

Model:054114-01603

• Measurement Range: (Full Scale Capacity)60000 lb
• Measurement Range: (Full Scale Capacity)266.90 kN
• Sensitivity: (output at rated capacity)1.50 mV/V
• Sensitivity: (output at rated capacity)1.50 mV/V
• Size - Diameter: 1.888 in
• Size - Diameter: 47.96 mm
• Size - Height: 0.665 in
• Size - Height: 16.90 mm

Model:054116-01803

• Measurement Range: (Full Scale Capacity)80000 lb
• Measurement Range: (Full Scale Capacity)355.60 kN
• Sensitivity: (output at rated capacity)1.50 mV/V
• Sensitivity: (output at rated capacity)1.50 mV/V
• Size - Diameter: 2.160 in
• Size - Diameter: 54.86 mm
• Size - Height: 0.735 in
• Size - Height: 18.67 mm

Model:054124-01104

• Measurement Range: (Full Scale Capacity)100000 lb
• Measurement Range: (Full Scale Capacity)444.82 kN
• Sensitivity: (output at rated capacity)0.9 mV/V
• Sensitivity: (output at rated capacity)0.9 mV/V
• Size - Diameter: 3.73 in
• Size - Diameter: 94.74 mm
• Size - Height: 0.933 in
• Size - Height: 23.70 mm

Model:054204-01093

• Measurement Range: (Full Scale Capacity)2023 lb
• Measurement Range: (Full Scale Capacity)9 kN
• Sensitivity: (output at rated capacity)1.50 mV/V
• Sensitivity: (output at rated capacity)1.50 mV/V
• Size - Diameter: .625 in
• Size - Diameter: 15.88 mm
• Size - Height: .255 in
• Size - Height: 6.48 mm

Model:054206-01203

• Measurement Range: (Full Scale Capacity)4496 lb
• Measurement Range: (Full Scale Capacity)20 kN
• Sensitivity: (output at rated capacity)1.50 mV/V
• Sensitivity: (output at rated capacity)1.50 mV/V
• Size - Diameter: 0.674 in
• Size - Diameter: 17.12 mm
• Size - Height: 0.255 in
• Size - Height: 6.48 mm

Model:054208-01353

• Measurement Range: (Full Scale Capacity)7869 lb
• Measurement Range: (Full Scale Capacity)35.00 kN
• Sensitivity: (output at rated capacity)1.50 mV/V
• Sensitivity: (output at rated capacity)1.50 mV/V
• Size - Diameter: .809 in
• Size - Diameter: 20.55 mm
• Size - Height: 0.380 in
• Size - Height: 9.65 mm

Model:054210-01543

• Measurement Range: (Full Scale Capacity)12139.68 lb
• Measurement Range: (Full Scale Capacity)54 kN
• Sensitivity: (output at rated capacity)1.50 mV/V
• Sensitivity: (output at rated capacity)1.50 mV/V
• Size - Diameter: 0.943 in
• Size - Diameter: 23.95 mm
• Size - Height: 0.420 in
• Size - Height: 10.69 mm

Model:054212-01084

• Measurement Range: (Full Scale Capacity)17986 lb
• Measurement Range: (Full Scale Capacity)80.00 kN
• Sensitivity: (output at rated capacity)1.50 mV/V
• Sensitivity: (output at rated capacity)1.50 mV/V
• Size - Diameter: 1.111 in
• Size - Diameter: 28.22 mm
• Size - Height: 0.455 in
• Size - Height: 11.56 mm

Model:054214-01114

• Measurement Range: (Full Scale Capacity)24730 lb
• Measurement Range: (Full Scale Capacity)110 kN
• Sensitivity: (output at rated capacity)1.50 mV/V
• Sensitivity: (output at rated capacity)1.50 mV/V
• Size - Diameter: 1.213 in
• Size - Diameter: 30.81 mm
• Size - Height: 0.495 in
• Size - Height: 12.57 mm

Model:054216-01144

• Measurement Range: (Full Scale Capacity)31473 lb
• Measurement Range: (Full Scale Capacity)140 kN
• Sensitivity: (output at rated capacity)1.50 mV/V
• Sensitivity: (output at rated capacity)1.50 mV/V
• Size - Diameter: 1.350 in
• Size - Diameter: 34.29 mm
• Size - Height: 0.525 in
• Size - Height: 13.34 mm

Model:054218-01184

• Measurement Range: (Full Scale Capacity)40465 lb
• Measurement Range: (Full Scale Capacity)180 kN
• Sensitivity: (output at rated capacity)1.50 mV/V
• Sensitivity: (output at rated capacity)1.50 mV/V
• Size - Diameter: 1.62 in
• Size - Diameter: 41.15 mm
• Size - Height: 0.595 in
• Size - Height: 15.11 mm

Model:054220-01224

• Measurement Range: (Full Scale Capacity)49458 lb
• Measurement Range: (Full Scale Capacity)220 kN
• Sensitivity: (output at rated capacity)1.50 mV/V
• Sensitivity: (output at rated capacity)1.50 mV/V
• Size - Diameter: 1.62 in
• Size - Diameter: 41.15 mm
• Size - Height: 0.595 in
• Size - Height: 15.11 mm

Model:054222-01274

• Measurement Range: (Full Scale Capacity)60701 lb
• Measurement Range: (Full Scale Capacity)270 kN
• Sensitivity: (output at rated capacity)1.50 mV/V
• Sensitivity: (output at rated capacity)1.50 mV/V
• Size - Diameter: 1.888 in
• Size - Diameter: 47.96 mm
• Size - Height: 0.665 in
• Size - Height: 16.89 mm

Model:054224-01324

• Measurement Range: (Full Scale Capacity)71942 lb
• Measurement Range: (Full Scale Capacity)320 kN
• Sensitivity: (output at rated capacity)1.50 mV/V
• Sensitivity: (output at rated capacity)1.50 mV/V
• Size - Diameter: 2.160 in
• Size - Diameter: 54.86 mm
• Size - Height: 0.735 in
• Size - Height: 18.67 mm

Model:054230-01404

Model:054236-01804

• Measurement Range: (Full Scale Capacity)179850 lb
• Measurement Range: (Full Scale Capacity)800 kN
• Sensitivity: (output at rated capacity)1.50 mV/V
• Sensitivity: (output at rated capacity)1.50 mV/V
• Size - Diameter: 3.13 in
• Size - Diameter: 79.50 mm
• Size - Height: 0.875 in
• Size - Height: 22.23 mm
