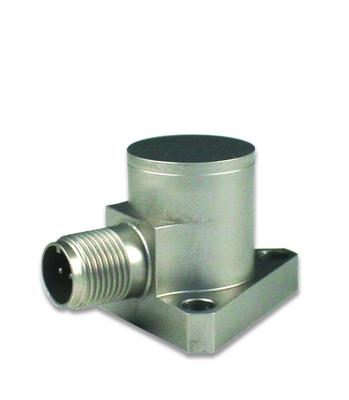

Charge Output Accel., 10 pC/g, 500g, to 5 kHz, 2-pin conn., 3- hole mount, to +900F, ATEX Approved
Sensor can be paired with any one of the charge amplifiers in the Suggested Accessories section. If paired with a Model Number 422M182, cable Model Numbers 013GNXXXGP and 045M19 should be used. If paired with a Model Numbers 421A30 or EX682A40, cable Model Numbers 013GNXXXGP and 045M21 should be used. Cable Model Number 013GNXXXGP is radiation-hardened for nuclear applications.
Replaces Legacy Model Endevco 6233C-10
- Sensitivity: (±5%)10 pC/g
(1.02 pC/(m/s²))
- Measurement Range: ±1000 g pk
(±9810 m/s² pk)
- Frequency Range: (±5%)4 kHz
(4 kHz)
- Weight: 2.6 oz
(75 gm)
RELATED PRODUCTS
|
English: |
SI: |
|
| Performance |
| Sensitivity (±5 %) |
10 pC/g |
1.02 pC/(m/s²) |
|
| Measurement Range |
±1000 g pk |
±9810 m/s² pk |
|
| Frequency Range (±5 %) |
4 kHz |
4 kHz |
[3]
|
| Resonant Frequency |
≥25 kHz |
≥25 kHz |
|
| Non-Linearity |
≤1 % |
≤1 % |
[1]
|
| Transverse Sensitivity |
≤5 % |
≤5 % |
[2]
|
| Environmental |
| Overload Limit (Shock) |
±2000 g pk |
±19620 m/s² pk |
|
| Temperature Range |
-65 to +900 °F |
-54 to +482 °C |
|
| Temperature Range |
-65 to +900 °F |
-54 to +482 °C |
|
| Temperature Response |
See Graph %/°F |
See Graph %/°F |
[4]
|
| Base Strain Sensitivity |
0.033 g/µε |
0.32 (m/s²)/µε |
[4]
|
| Radiation Exposure Limit (Integrated Neutron Flux) |
1 E10 N/cm² |
1 E10 N/cm² |
|
| Radiation Exposure Limit (Integrated Gamma Flux) |
1 E8 rad |
1 E8 rad |
|
| Electrical |
| Capacitance (Pin to Pin) |
525 pF |
525 pF |
[4]
|
| Capacitance (Pin to Case) |
26 pF |
26 pF |
[4]
|
| Capacitance (Unbalance Between Pins) |
≤2 pF |
≤2 pF |
|
| Insulation Resistance ((Pin to Case 70°F) |
>100000000 Ohm |
>100000000 Ohm |
[4]
|
| Insulation Resistance (Pin to Pin 70°F) |
>1000000000 Ohm |
>1000000000 Ohm |
|
| Insulation Resistance (Pin to Pin 900°F) |
>100 kohm |
>100 kohm |
|
| Output Polarity |
Differential |
Differential |
|
| Physical |
| Sensing Element |
Ceramic |
Ceramic |
|
| Sealing |
Hermetic |
Hermetic |
|
| Size - Height |
1.0 in |
25.4 mm |
|
| Size - Diameter |
0.75 in |
19 mm |
|
| Weight |
2.6 oz |
75 gm |
[4]
|
| Electrical Connector |
7/16-27 2-Pin |
7/16-27 2-Pin |
|
| Electrical Connection Position |
Side |
Side |
|
| Mounting |
Through Holes (3) |
Through Holes (3) |
|
* All specifications are at room temperature unless otherwise specified
.
Specification Notes
[1] Zero-based, least-squares, straight line method.
[2] Transverse sensitivity is typically <= 3%.
[3] Low frequency response is determined by external signal conditioning electronics.
[4] Typical.
[5] See PCB Declaration of Conformance PS081 for details.
Accessories
|
|
|
| Supplied |
| ACS-1 |
Single axis amplitude response calibration from 10 Hz to upper 5% frequency, NIST traceable |
1 |
| 081A99 |
Socket head cap screw, 8-32 x 0.5" long, 18-8 stainless steel |
3 |
Optional Versions
( EX ) Hazardous Area Approval- contact factory for specific approvals
| Hazardous Area Approval |
Ex ia IIC T4, -54°C≤Ta≤135°C, II 1 G |
| Hazardous Area Approval |
Ex ia IIC T1, -54°C≤Ta≤450°C, II 1 G |
| Hazardous Area Approval |
Ex nL IIC T4, -54°C≤Ta≤135°C, II 3 G |
| Hazardous Area Approval |
Ex nL IIC T1, -54°C≤Ta≤450°C, II 3 G |
