Tension and Torque-Tension Load Cells

For Use in Measuring and Analyzing Threaded Fastener Characteristics in Production Lot Testing and R&D Studies

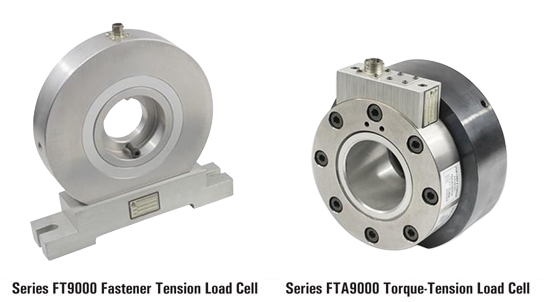

PCB's RS Technologies Series FT9000 & FTA9000 Fastener Tension and Fastener Torque-Tension Load Cells use a full bridge strain gage design. This complete line of fastener testing load cells provides a signal proportional to the tension developed in a test fastener when the tightening torque is applied. In addition, the fastener torque-tension version, also referred to as a research head, measures the thread torque (pitch torque plus thread friction torque) at the same time. The tension or torque-tension output signals from either type of load cell are read using conventional strain gage readout device or recorded by a data acquisition system. These load cells serve as an integral part of a torque-tension fastener test system when used with a torque-angle sensor and a suitable data acquisition instrument; Model 962 Portable Transient Data Recorder is recommended.

Highlights:

  • Fastener tension load cell capacities range from 3.3 to 112 klbf (15 to 500 kN)
  • Fastener Torque -Tension load cell capacities range from 4.5 to 405 klbf (20 to 1,800 kN)
  • Uses standard Skidmore-Wilhelm plates
  • Slotted base allows for fast and easy securing to existing test fixtures

Applications:

  • Measure/Analyze Threaded Fastener Characteristics
  • Perform Laboratory Evaluation of Fastener Tension & Thread Torque Characteristics
  • Measure Fastener Tension and/or Thread Friction Torque During Rundown Operations
  • Test Special Devices (such as locknuts, serrated underheads, etc.)
  • Measure Effects of Materials, Surface Finishes, Platings, & Coatings
Compare selected models ()
[ clear compare ]
Mouse Over Image for Product Description.
Model Number

Model:059810-01153

  • Measurement Range: 3372 lbf
  • Measurement Range: 15 kN
  • Size - Height: 8.95 in
  • Size - Height: 227 mm
  • Electrical Connector: PT02A-8-4P
  • Electrical Connector: PT02A-8-4P
$6985.00 USD
(Pricing valid in US only)
DatasheetAdd to Cart

Add this product to my product comparison
Model Number

Model:059810-01253

  • Measurement Range: 5620 lbf
  • Measurement Range: 25 kN
  • Size - Height: 8.95 in
  • Size - Height: 227 mm
  • Electrical Connector: PT02A-8-4P
  • Electrical Connector: PT02A-8-4P
$6345.00 USD
(Pricing valid in US only)
DatasheetAdd to Cart

Add this product to my product comparison
Model Number

Model:059810-01104

  • Measurement Range: 22.5 klbf
  • Measurement Range: 100 kN
  • Size - Height: 8.95 in
  • Size - Height: 227 mm
  • Electrical Connector: PT02A-8-4P
  • Electrical Connector: PT02A-8-4P
$7445.00 USD
(Pricing valid in US only)
DatasheetAdd to Cart

Add this product to my product comparison
Model Number

Model:059810-01304

  • Measurement Range: 67.5 klbf
  • Measurement Range: 300 kN
  • Size - Height: 8.95 in
  • Size - Height: 227 mm
  • Electrical Connector: PT02A-8-4P
  • Electrical Connector: PT02A-8-4P
$8550.00 USD
(Pricing valid in US only)
DatasheetAdd to Cart

Add this product to my product comparison
Model Number

Model:059810-01504

  • Measurement Range: 112 klbf
  • Measurement Range: 500 kN
  • Size - Height: 8.95 in
  • Size - Height: 227 mm
  • Electrical Connector: PT02A-8-4P
  • Electrical Connector: PT02A-8-4P
$7000.00 USD
(Pricing valid in US only)
DatasheetAdd to Cart

Add this product to my product comparison
Compare selected models ()
[ clear compare ]
Mouse Over Image for Product Description.
Model Number

Model:059400-01024

  • Measurement Range: (Tension)4500 lbf
  • Measurement Range: (Tension)20 kN
  • Sensitivity: (Tension)2.0 mV/V
  • Sensitivity: (Tension)2.0 mV/V
  • Size - Height: 9.19 in
  • Size - Height: 233 mm
  • Electrical Connector: PT02H-12-10P
  • Electrical Connector: PT02H-12-10P
$15225.00 USD
(Pricing valid in US only)
DatasheetAdd to Cart

Add this product to my product comparison
Model Number

Model:059500-01044

  • Measurement Range: (Tension)9k lbf
  • Measurement Range: (Tension)40 kN
  • Sensitivity: (Tension)2.0 mV/V
  • Sensitivity: (Tension)2.0 mV/V
  • Size - Height: 9.19 in
  • Size - Height: 233 mm
  • Electrical Connector: PT02H-12-10P
  • Electrical Connector: PT02H-12-10P
$14885.00 USD
(Pricing valid in US only)
DatasheetAdd to Cart

Add this product to my product comparison
Model Number

Model:059600-01104

  • Measurement Range: (Tension)22.5k lbf
  • Measurement Range: (Tension)100 kN
  • Sensitivity: (Tension)2.0 mV/V
  • Sensitivity: (Tension)2.0 mV/V
  • Size - Height: 9.56 in
  • Size - Height: 243 mm
  • Electrical Connector: PT02H-12-10P
  • Electrical Connector: PT02H-12-10P
$15165.00 USD
(Pricing valid in US only)
DatasheetAdd to Cart

Add this product to my product comparison
Model Number

Model:059625-01304

  • Measurement Range: (Tension)67.4 lbf
  • Measurement Range: (Tension)300 kN
  • Sensitivity: (Tension)2.0 mV/V
  • Sensitivity: (Tension)2.0 mV/V
  • Size - Height: 9.19 in
  • Size - Height: 233 mm
  • Electrical Connector: PT02H-12-10P
  • Electrical Connector: PT02H-12-10P
$15435.00 USD
(Pricing valid in US only)
DatasheetAdd to Cart

Add this product to my product comparison
Model Number

Model:059650-01604

    $16500.00 USD
    (Pricing valid in US only)
    DatasheetAdd to Cart

    Add this product to my product comparison
    Model Number

    Model:059720-01095

      $19575.00 USD
      (Pricing valid in US only)
      DatasheetAdd to Cart

      Add this product to my product comparison
      Model Number

      Model:059740-01185

      • Measurement Range: (Tension)405k lbf
      • Measurement Range: (Tension)1800 kN
      • Sensitivity: (Tension)2.0 mV/V
      • Sensitivity: (Tension)2.0 mV/V
      • Size - Height: 15.63 in
      • Size - Height: 397 mm
      • Electrical Connector: PT02H-12-10P
      • Electrical Connector: PT02H-12-10P
      $25500.00 USD
      (Pricing valid in US only)
      DatasheetAdd to Cart

      Add this product to my product comparison
