intrinsically safe, linear adjust mechanical switch, 0 to 7 g’s, 0 to 100 hz, pushbutton reset

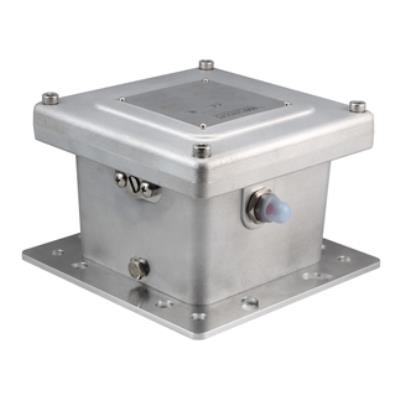

Vibration Switch

Model EX685A09

Retrieving Price...

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
286 Call for Lead Time
  • CE
  • EX
  • IP

Intrinsically safe, linear adjust mechanical switch, 0 to 7 g’s, 0 to 100 Hz, pushbutton reset

  • Cable Input: 3/4-14 NPT
  • Relay: 3A Form C 480 VAC
  • Electrical Connector: Screw Terminals

Specification Notes

[1] See PCB Declaration of Conformance PS145 for details.

English: SI:
Performance
Measurement Range 0 to 7 g pk 0 to 68.7 m/s² pk
Frequency Range 0 to 6000 cpm 0 to 100 Hz
Relay 3A Form C 480 VAC 3A Form C 480 VAC
Relay(Contacts) (DPDT) Normally Open / Closed Normally Open / Closed
Control Interface
Reset Function Momentary Pushbutton Switch Momentary Pushbutton Switch
Environmental
Temperature Range (Operating) -4 to 140 °F -20 to 60 °C
Hazardous Area Approval See Manual See Manual
Enclosure Rating IP66 IP66
Physical
Size - Width 6.38 in 162.1 mm
Size - Height 4.18 in 106.3 mm
Size - Depth 6.38 in 162.1 mm
Weight 6.1 lb 2.7 kg
Sensing Element Magnet Magnet
Housing Material Aluminum Alloy Aluminum Alloy
Electrical Connector Screw Terminals Screw Terminals
Screw Terminal Wire Size 24-14 AWG 0.2 - 2.5 mm²
Cable Input 3/4-14 NPT 3/4-14 NPT
Sensing Geometry Inertial Element Inertial Element

* All specifications are at room temperature unless otherwise specified.
