accelerometer, pe, 100 pc/g, radiation hardened,-67°f to +550°f, isolated, 10-32 mounting stud, top connector, 29 grams

ISOSHEAR PE ACCEL

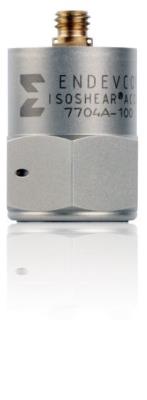

Model 7704A-100

Add to Quote
  • IP

Accelerometer, PE, 100 pC/g, radiation hardened,-67°F to +550°F, isolated, 10-32 mounting stud, top connector, 29 grams

    Specification Notes

    English: SI:
    General
    Output type Charge Charge
    Sensitivity 100 pC/g 10.2 pC/(m/sec2)
    Max Temp 550°F 288°C
    Max Measurement Range 1000 g pk 9810 m/sec2 pk
    Max Frequency (±5%) 6000 Hz 6000 Hz
    Number of Axis 1 1
    Replacement (-R) No No

    * All specifications are at room temperature unless otherwise specified.

    Accessories
    2981-12 https://buy.endevco.com/accessories/2981-12-accessories 1
    3090DV-120 https://buy.endevco.com/cables/3090dv-cable-2 1

    Product Documents

    Product Downloads

    EDV-DS-7704A-1123.pdf

    Build Out Your Measurement Chain
