link quartz force sensor, 45k lb comp., 20k lb tension, 18 pc/lb

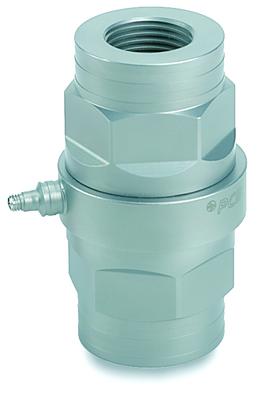

Charge Output Force Sensor

Model 236B

Add to Quote
  • IP

Link quartz force sensor, 45k lb comp., 20k lb tension, 18 pC/lb

  • Sensitivity: (±15%)18 pC/lb (4047 pC/kN)
  • Upper Frequency Limit: 5000 Hz
  • Temperature Range: -100 to +400 °F (-73 to 204.4 °C)
  • Mounting Thread: 1 - 12 Female
  • Weight: 32 oz (907 gm)

Specification Notes

[1] Zero-based, least-squares, straight line method.

English: SI:
Performance
Sensitivity (±15 %) 18 pC/lb 4047 pC/kN
Measurement Range (Compression) ≤45000 lb ≤200.16 kN
Measurement Range (Tension) ≤20000 lb ≤88.96 kN
Maximum Static Force (Compression) 55000 lb 244.64 kN
Maximum Static Force (Tension) 25000 lb 111.2 kN
Upper Frequency Limit 5000 Hz 5000 Hz
Non-Linearity ≤1.25 % FS ≤1.25 % FS [1]
Environmental
Temperature Range -100 to +400 °F -73 to 204.4 °C
Temperature Coefficient of Sensitivity ≤0.03 %/°F ≤0.054 %/°C
Electrical
Capacitance ≥80 pF ≥80 pF
Insulation Resistance ≥1000000000000 Ohm ≥1000000000000 Ohm
Output Polarity (Compression) Negative Negative
Output Polarity (Tension) Positive Positive
Physical
Stiffness 11 lb/µin 1.9 kN/µm
Size - Diameter 2.05 in 52.7 mm
Size - Height 3.50 in 88.90 mm
Weight 32 oz 907 gm
Housing Material Stainless Steel Stainless Steel
Sealing Hermetic Hermetic
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Electrical Connection Position Side Side
Mating Connector (Required) 10-32 Coaxial Plug 10-32 Coaxial Plug
Mounting Thread 1 - 12 Female 1 - 12 Female

* All specifications are at room temperature unless otherwise specified.

Optional Versions

(M) Metric Mount

English SI
Mounting Thread M24 x 1.50 Female

(W) Water Resistant Cable

English SI
Electrical Connector Integral Cable
Electrical Connection Position Side
