impact icp® quartz force sensor, 10 lb comp., 500 mv/lb

Force Sensor, ICP®

Model 200B01

  • CE
  • IP

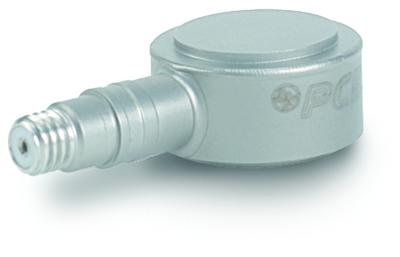

Impact ICP® quartz force sensor, 10 lb comp., 500 mV/lb

***Replaced by 208C01***
  • Measurement Range: 10 lb (0.04448 kN)
  • Sensitivity: (±15%)500 mV/lb (112410 mV/kN)
  • Low Frequency Response: (-5%)0.01 Hz
  • Upper Frequency Limit: 75000 Hz
  • Temperature Range: -65 to +250 °F (-54 to +121 °C)
  • Mounting Thread: 10-32 Female (10-32 Female)

Specification Notes


[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Calculated from discharge time constant.
[4] Estimated using rigid body dynamics calculations.
[5] Sensor contains protected electronics which may cause long 'turn-on" times.
[2] Typical.
[6] See PCB Declaration of Conformance PS023 for details.

English: SI:
Performance
Sensitivity (±15 %) 500 mV/lb 112410 mV/kN
Measurement Range (Compression) 10 lb 0.04448 kN
Maximum Static Force (Compression) 150 lb 0.6672 kN
Broadband Resolution (1) 0.0002 lb-rms 0.0008896 N-rms [2]
Low Frequency Response (-5 %) 0.01 Hz 0.01 Hz [3]
Upper Frequency Limit 75000 Hz 75000 Hz [4]
Non-Linearity ≤1 % FS ≤1 % FS [1]
Environmental
Temperature Range -65 to +250 °F -54 to +121 °C
Temperature Coefficient of Sensitivity ≤0.03 %/°F ≤0.054 %/°C
Electrical
Discharge Time Constant (at room temp) ≥50 sec ≥50 sec
Excitation Voltage 18 to 30 VDC 18 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤100 Ohm ≤100 Ohm
Output Bias Voltage 8 to 12 VDC 8 to 12 VDC [5]
Output Polarity (Compression) Positive Positive
Physical
Stiffness 11 lb/µin 1.9 kN/µm [2]
Size - Diameter 0.650 in 16.51 mm
Size - Height 0.360 in 9.14 mm
Size - Sensing Surface 0.500 in 12.7 mm
Weight 0.5 oz 14 gm
Housing Material Stainless Steel Stainless Steel
Sealing Hermetic Hermetic
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Electrical Connection Position Side Side
Mounting Thread 10-32 Female 10-32 Female

* All specifications are at room temperature unless otherwise specified.

Accessories


Supplied
080A81 Thread lock adhesive (for Series 200) 1
081B05 Mounting stud, 10-32 to 10-32, 0.275" long, BeCu w/shoulder 1
084A83 Rubber impact pad 1
M081A62 Mounting stud, 10-32 to M6x1x 8.3 mm long, BeCu 1

Optional Versions


(W) Water Resistant Cable

English SI
Electrical Connector Sealed Cable
Electrical Connection Position Side

Product Documents


Product Drawing
