4-conductor, 30 awg (7/38), twisted bundle, shielded, fep cable (price per foot)

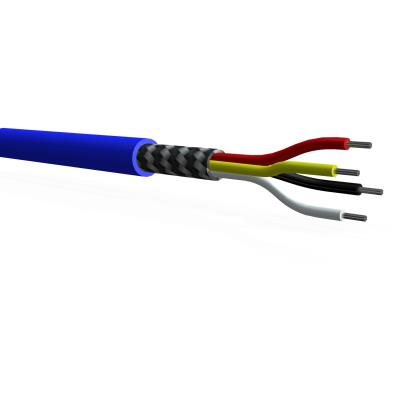

4-CONDUCTOR, 30 AWG, FEP CABLE

Model 010

  • IP

4-conductor, 30 awg (7/38), twisted bundle, shielded, FEP cable (price per foot)

  • Cable Style: Multi Conductor - Shielded
  • Number of Conductors: 4
  • Cable Jacket Material: FEP
  • Temperature Range: -130 to +392 °F (-90 to +200 °C)

Specification Notes

[1] Typical.
[2] Nominal.

English: SI:
Performance
Number of Conductors 4 4
Cable Style Multi Conductor - Shielded Multi Conductor - Shielded
Environmental
Temperature Range -130 to +392 °F -90 to +200 °C
Electrical
Capacitance (conductor to conductor @ 70 °F (21 °C)) 16 pF/ft 52.4 pF/m
Capacitance (conductor to shield / drain @ 70 °F (21 °C)) 25.8 pF/ft 84.6 pF/m
Voltage Rating (rms - maximum) 160 V 160 V
Physical
Cable Jacket Diameter 0.1 in 2.54 mm [2]
Cable Jacket Material FEP FEP
Cable Jacket Color Blue Blue
Conductor Style Stranded - 7 Strands 38 AWG Stranded - 7 Strands 38 AWG
Conductor Material Silver Plated Copper Alloy Silver Plated Copper Alloy
Conductor Diameter (30 AWG) 0.024 in 0.61 mm [2]
Insulation Material Over Conductor(s) Extruded TFE Extruded TFE
Shield Type Over Bundle Braid: 90% Minimum Coverage Braid: 90% Minimum Coverage
Shield Material Over Bundle Silver Plated Copper Silver Plated Copper
Shield Wire Diameter Over Bundle (Each Strand 38 AWG) 0.077 in 1.95 mm [2]
Bend Radius (minimum) 1 in 25.4 mm
Weight 0.16 oz/ft 14.6 gm/m [1]

* All specifications are at room temperature unless otherwise specified.
