4-conductor, 34 awg, twisted bundle, low noise, shielded, lightweight fep cable (price per foot)

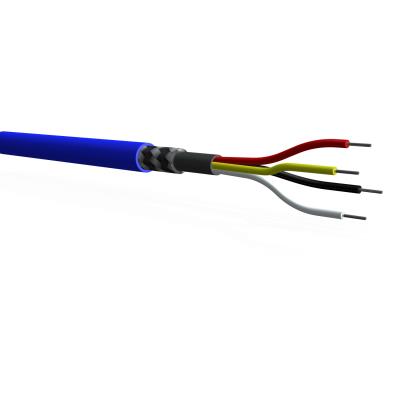

Lightweight Shielded Four Conductor Cable

Model 034

  • IP

4-conductor, 34 awg, twisted bundle, low noise, shielded, lightweight FEP cable (price per foot)

  • Cable Style: Multi Conductor - Shielded
  • Number of Conductors: 4
  • Cable Jacket Material: FEP
  • Temperature Range: -130 to +392 °F (-90 to +200 °C)

Specification Notes


[1] Typical.

English: SI:
Performance
Number of Conductors 4 4
Cable Style Multi Conductor - Shielded Multi Conductor - Shielded
Cable Configuration Not Twisted Not Twisted
Environmental
Temperature Range -130 to +392 °F -90 to +200 °C
Pull Strength 20 lb 90 N [1]
Electrical
Capacitance (conductor to conductor @ 70 °F (21 °C)) 14 pF/ft 46 pF/m
Capacitance (conductor to shield / drain @ 70 °F (21 °C)) 25 pF/ft 82 pF/m
Voltage Rating (rms - maximum) 160 V 160 V
Noise Level (pk - pk) <30 mV <30 mV
Physical
Cable Jacket Diameter 0.077 in 1.96 mm [1]
Cable Jacket Material FEP FEP
Cable Jacket Color Blue Blue
Conductor Style Solid Solid
Conductor Material Silver Plated Copper Silver Plated Copper
Conductor Diameter (34 AWG) .006 in 0.15 mm [1]
Insulation Material Over Conductor(s) Extruded PTFE Extruded PTFE
Shield Type Over Conductor(s) Braid: 90% Minimum Coverage Braid: 90% Minimum Coverage
Shield Material Over Conductor(s) Silver Plated Wire Silver Plated Wire
Shield Wire Diameter Over Conductor(s) (Each Strand 40 AWG) 0.063 in 1.60 mm [1]
Low Noise Barrier Material Graphite Impregnated PTFE Tape Graphite Impregnated PTFE Tape
Bend Radius (minimum) 1 in 25.4 mm
Weight 0.09 oz/ft 8.31 gm/m [1]

* All specifications are at room temperature unless otherwise specified.
