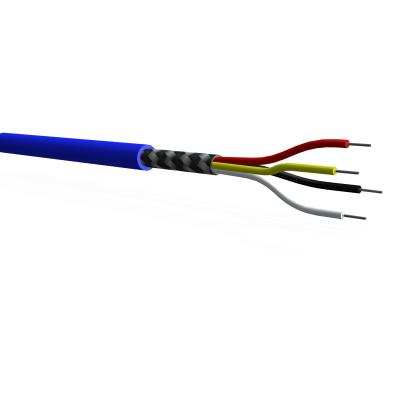

4-conductor, 36 awg, twisted bundle, shielded, flexible lightweight silicone cable (price per foot)

Cables

Model 019

  • IP

4-conductor, 36 awg, twisted bundle, shielded, flexible lightweight silicone cable (price per foot)

  • Cable Style: Multi Conductor - Shielded
  • Number of Conductors: 4
  • Cable Jacket Material: Silicone
  • Temperature Range: -76 to +500 °F (-60 to +260 °C)

Specification Notes


[1] Typical.

English: SI:
Performance
Number of Conductors 4 4
Cable Style Multi Conductor - Shielded Multi Conductor - Shielded
Cable Configuration Twisted Bundle Twisted Bundle
Environmental
Temperature Range -76 to +500 °F -60 to +260 °C
Pull Strength 10 lb 45 N [1]
Electrical
Capacitance (conductor to conductor @ 70 °F (21 °C)) 15 pF/ft 49.2 pF/m
Capacitance (conductor to shield / drain @ 70 °F (21 °C)) 26 pF/ft 85.2 pF/m
Physical
Cable Jacket Diameter 0.07 in 1.8 mm [1]
Cable Jacket Material Silicone Silicone
Cable Jacket Color Blue Blue
Conductor Style Solid Solid
Conductor Material Silver Plated Copper Alloy Silver Plated Copper Alloy
Conductor Diameter (36 AWG) .005 in .13 mm [1]
Shield Type Over Conductor(s) Braid: 90% Minimum Coverage Braid: 90% Minimum Coverage
Shield Material Over Conductor(s) Silver Plated Wire Silver Plated Wire
Bend Radius (minimum) 0.7 in 18 mm
Weight .13 oz/ft 11.8 gm/m [1]

* All specifications are at room temperature unless otherwise specified.
