Model : HT602D01 | Industrial ICP® Accelerometer

Click for lead times
Lead Time for 1-10 is 2 Wks
Lead Time for 11-20 is 3 Wks
platinum stock products; high temperature, low profile, industrial, ceramic shear icp® accel., 100 mv/g, 0.8 to 8000 hz, side exit, 2-pin connector, single point iso 17025 accredited calibration
$ 325.00 USD
(Pricing valid in US only!)
96 units in stock

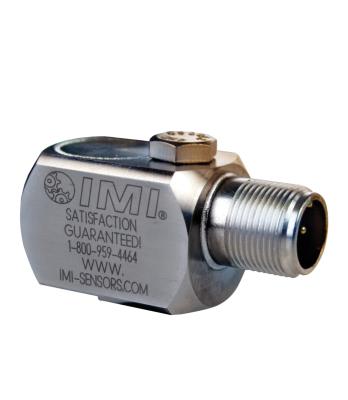

Platinum Stock Products; High temperature, low profile, industrial, ceramic shear ICP® accel., 100 mV/g, 0.8 to 8000 Hz, side exit, 2-pin connector, single point ISO 17025 accredited calibration

Capable of withstanding continuous temperatures of 325 °F (162 °C) without decay in performance, higher than any other IEPE accelerometer in the industry.

  • Sensitivity: (±10%)100 mV/g ( 10.2 mV/(m/s²))
  • Frequency Range: (±3dB)48 to 480000 cpm ( 0.8 to 8000 Hz)
  • Sensing Element: Ceramic
  • Measurement Range: ±50 g ( ±490 m/s²)
  • Weight: 5.4 oz ( 153 gm)

RELATED PRODUCTS

080A118
080A118

Sensor mounting pad, adhesive or weld mount to machine, 1" diameter, 1/4-28 threaded hole for sensor mount



Add to Cart for Quote
Add to Cart
English: SI:
Performance
Sensitivity (±10 %) 100 mV/g 10.2 mV/(m/s²) [ 1]
Measurement Range ±50 g ±490 m/s²
Frequency Range (±10 %) 102 to 180000 cpm 1.7 to 3000 Hz [ 2] [ 4]
Frequency Range (±3 dB) 48 to 480000 cpm 0.8 to 8000 Hz
Resonant Frequency 1500 kcpm 25 kHz [ 5]
Broadband Resolution (1) 150 µg 1472 µm/sec2 [ 5]
Non-Linearity ±1 % ±1 % [ 3]
Transverse Sensitivity ≤5 % ≤5 %
Environmental
Overload Limit (Shock) 5000 g pk 49050 m/s² pk
Temperature Range -65 to 325 °F -54 to 162 °C
Temperature Response See Graph %/°F See Graph %/°F [ 5]
Enclosure Rating IP68 IP68
Electrical
Settling Time (within 1% of bias) ≤2.0 sec ≤2.0 sec
Discharge Time Constant ≥0.2 sec ≥0.2 sec
Excitation Voltage 18 to 28 VDC 18 to 28 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance <150 Ohm <150 Ohm
Output Bias Voltage 8 to 12 VDC 8 to 12 VDC
Spectral Noise (10 Hz) 9.0 µg/√Hz 88.3 (µm/sec2)/√Hz [ 5]
Spectral Noise (100 Hz) 4.0 µg/√Hz 39.2 (µm/sec2)/√Hz [ 5]
Spectral Noise (1 kHz) 2.0 µg/√Hz 19.6 (µm/sec2)/√Hz [ 5]
Electrical Isolation >100000000 Ohm >100000000 Ohm
Physical
Size - Length 2.1 in 53.3 mm
Size - Width 1.0 in 25.4 mm
Size - Height 1.0 in 25.4 mm
Weight 5.4 oz 153 gm
Mounting Thread 1/4-28 UNF No Metric Equivalent [ 6]
Mounting Torque 2 to 5 ft-lb 2.7 to 6.8 Nm
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Stainless Steel Stainless Steel
Sealing Welded Hermetic Welded Hermetic
Electrical Connector 2-Pin MIL-C-5015 2-Pin MIL-C-5015
Electrical Connection Position Side Side
Electrical Connections (Pin A) Signal / Power Signal / Power
Electrical Connections (Pin B) Ground Ground
* All specifications are at room temperature unless otherwise specified
.




Specification Notes

[ 1] Conversion Factor 1g = 9.81 m/s².
[ 2] 1Hz = 60 cpm (cycles per minute).
[ 3] Zero-based, least-squares, straight line method.
[ 4] The high frequency tolerance is accurate within ±10% of the specified frequency.
[ 5] Typical.
[ 6] 1/4-28 has no equivalent in S.I. units.
[ 7] See PCB Declaration of Conformance PS023 for details.


Accessories
Supplied
081A73 1/4-28 x 1.34" hex head captive thru bolt 1


Optional Versions

( M ) Metric Mount
Accessories:
Supplied M081A73 Captive Mounting Bolt 1
