bnc termination box, 8 x 6 x 4 nema 4x (ip66) fiberglass enc, 6 channels, terminal strip input, bnc jack output, 6 pgme07 cord grips

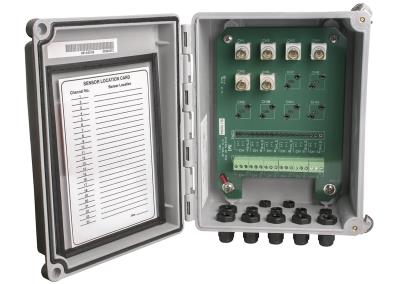

BNC Termination Enclosure

Model 691A50/06

Retrieving Price...

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
More on the way Lead Time for 1-5 is 2 Wks
Lead Time for 6-10 is 3 Wks
  • CE
  • IP

BNC termination box, 8" x 6" x 4" NEMA 4X (IP66) fiberglass enc, 6 channels, terminal strip input, BNC jack output, 6 PGME07 cord grips

  • Channels: 6
  • Housing Material: Fiberglass
  • Enclosure Rating: Nema 4X (IP66)

Specification Notes

[1] See PCB Declaration of Conformance PS174 for details.

English: SI:
Performance
Channels 6 6
Environmental
Enclosure Rating Nema 4X IP66
Temperature Range -15 to +158 °F -26 to +70 °C
Physical
Electrical Connector (Input) Terminal Block Terminal Block
Electrical Connector (Output) BNC Jack BNC Jack
Cable Input PGME07 PGME07
Housing Material Fiberglass Fiberglass
Size - Height 8 in 203 mm
Size - Width 6 in 152 mm
Size - Depth 4 in 102 mm
Weight 2.5 lb 1.14 kg

* All specifications are at room temperature unless otherwise specified.

Optional Versions

(PS) Painted Steel

English SI
Weight 5.0 2.3
Enclosure Rating IP65 Nema 12

(SS) Stainless Steel Enclosure

English SI
Enclosure Rating IP66 Nema 4X
Weight 5.5 2.5
