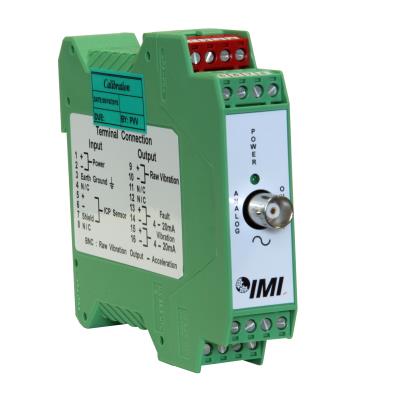

Model : 682C05 | BEARING FAULT DETECTOR

Click for lead times
Lead Time for 1-10 is 3 Wks
Lead Time for 11-20 is 4 Wks
$ 695.00 USD
(Pricing valid in US only!)
31 units in stock

Platinum Stock Products; Bearing Fault Detector (BFD), DIN rail mount vibration transmitter (for use w/ICP sensor), dual 4-20 mA outputs for overall and peak vibration

  • Output Range: 4 to 20 mA (4 to 20 mA)
  • Frequency Response: (±3dB)10 to 1k Hz (10 to 1k Hz)
  • Supply Voltage: 20 to 28 VDC
English: SI:
Performance
Input Signal 100 mV/g 10.2 mV/(m/s²)
Frequency Response (±3 dB) (Overall Vibration) 10 to 1k Hz 10 to 1k Hz
Frequency Response (±3 dB) (Fault) 1k or 5k to 100 kHz 1k or 5k to 100 kHz [2]
Measurement Range (Fault Detector) 50 g 50 g
Measurement Range (Vibration) 5/10/20 g 49.0/98.1/196.1 m/s² [3]
Measurement Range (Velocity) 0.5/1/2 in/sec 12.7/25.4/50.8 mm/sec [4]
Output Range 4 to 20 mA 4 to 20 mA [1] [2]
Sampling Time (±15 %) 7 sec 7 sec
Span (±5 %) 16 mA 16 mA
Control Interface
Power LED Green Green
Environmental
Warm Up <2 minutes <2 minutes
Temperature Range (Operating) 32 to 158 °F 0 to 70 °C
Temperature Range (Storage) -40 to 257 °F -40 to 125 °C
Electrical
Supply Voltage 20 to 28 VDC 20 to 28 VDC
Current Consumption ≤150 mA ≤150 mA
Excitation Voltage (±1 V) 24 VDC 24 VDC
Constant Current Excitation (±1 mA) 4 mA 4 mA
Raw Vibration Output +/-0.01 % of Input +/-0.01 % of Input
Load Resistance 500 Ohm 500 Ohm
Physical
Size - Width 0.9 in 22.5 mm
Size - Height 3.9 in 99 mm
Size - Depth 4.5 in 114.5 mm
Weight <5 oz <142 gm
Housing Material Polyamide Polyamide
Screw Terminal Wire Size 24-14 AWG 0.2 - 2.5 mm²
Electrical Connector (input/output) Removable Screw Terminals Removable Screw Terminals
Electrical Connector (Output, Vibration) BNC Jack BNC Jack
Din Rail Mount 1.38 in 35 mm
* All specifications are at room temperature unless otherwise specified
.


Specification Notes


[1] Output current voltage will fluctuate at frequencies below 5 Hz.
[2] Internal Dip switch selectable
[3] Acceleration mode.
[4] Velocity mode.
[5] See PCB Declaration of Conformance PS152 for details.
