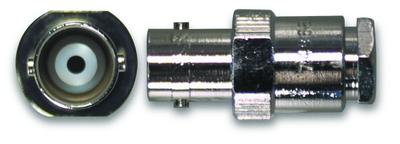

bnc jack

Cable Connector

Model AB

Retrieving Price...

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
More on the way Call for Lead Time
  • IP

BNC Jack

  • Connector Style: BNC
  • Connector Style: Coaxial
  • Connection Type: Jack (female socket / recepticle)
  • Temperature Range: -85 to 329 °F (-65 to 165 °C)

Specification Notes

English: SI:
Performance
Connector Style BNC BNC
Connector Style Coaxial Coaxial
Connection Type Jack (female socket / recepticle) Jack (female socket / recepticle)
Coupling Method (Locking) Bayonet Bayonet
Strain Relief Molded Boot Molded Boot
Environmental
Temperature Range -85 to 329 °F -65 to 165 °C
Electrical
Impedance 50 Ohm 50 Ohm
Insulation Resistance 5000 MOhm 5000 MOhm
Physical
Housing Material Brass Brass
Finish Nickel Coated Nickel Coated
Size - OD .57 in 14 in
Size - Length 1.2 in 30 mm
Weight 0.51 oz 14 gm
