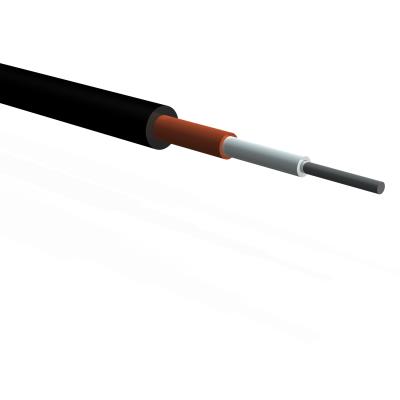

miniature, lightweight, coax, 28 awg, black pvc cable, cmh flame rated (price per foot)

Low Cost Coaxial Cable

Model 018

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock Lead Times
More on the way Call for Lead Time
  • IP

Miniature, lightweight, coax, 28 awg, black PVC cable, CMH flame rated (price per foot)

  • Cable Style: Coaxial
  • Number of Conductors: 1
  • Cable Jacket Material: PVC
  • Temperature Range: -22 to +221 °F (-30 to +105 °C)

Specification Notes

[1] Typical.

English: SI:
Number of Conductors 1 1
Cable Style Coaxial Coaxial
Temperature Range -22 to +221 °F -30 to +105 °C
Pull Strength 25 lb 110 N [1]
Capacitance (conductor to conductor @ 70 °F (21 °C)) 55 pF/ft 180 pF/m
Cable Jacket Diameter .054 in 1.37 mm [1]
Cable Jacket Material PVC PVC
Cable Jacket Color Black Black
Conductor Style Solid Solid
Conductor Material Tin Plated Copper Tin Plated Copper
Conductor Diameter (28 AWG) 0.013 in 0.33 mm [1]
Insulation Material Over Conductor(s) Polypropylene Polypropylene
Shield Type Over Conductor(s) Braid: 92% Minimum Coverage Braid: 92% Minimum Coverage
Shield Material Over Conductor(s) Copper Copper
Bend Radius (minimum) 0.5 in 13 mm
Weight .16 oz/ft 14.88 gm/m [1]

* All specifications are at room temperature unless otherwise specified.
