003 coaxial cable with tin plated copper braid & heat shrink tubing applied (price per foot)

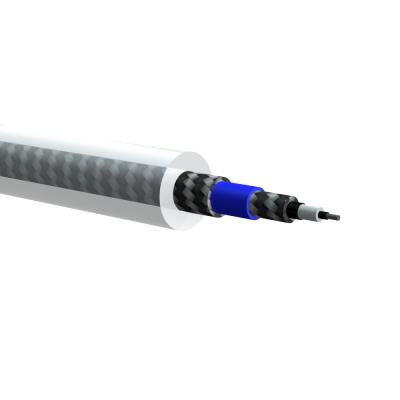

Ruggedized- Low Noise Coaxial Cable

Model 006

  • IP

003 coaxial cable with tin plated copper braid & heat shrink tubing applied (price per foot)

***Maximum cable length is 50ft (15m)***
  • Cable Style: Coaxial - Low Noise
  • Number of Conductors: 1
  • Cable Jacket Material: TFE
  • Temperature Range: -67 to +275 °F (-55 to +135 °C)

Specification Notes


[1] Typical.

English: SI:
Performance
Number of Conductors 1 1
Cable Style Coaxial - Low Noise Coaxial - Low Noise
Environmental
Temperature Range -67 to +275 °F -55 to +135 °C
Electrical
Impedance (±2 Ohm) 50 Ohm 50 Ohm
Capacitance (±2 pF/ft) (conductor to conductor @ 70 °F (21 °C)) 30 pF/ft 95 to 105 pF/m
Noise Level (pk - pk) ≤3 mV ≤3 mV
Physical
Cable Jacket Diameter .079 in 2.00 mm [1]
Cable Jacket Material TFE TFE
Cable Jacket Color Blue Blue
Protective Covering Diameter .20 in 5.08 mm [1]
Protective Covering Shrink Tube Over Steel Braid Shrink Tube Over Steel Braid
Conductor Style Solid Solid
Conductor Material Nickel Plated Copper Covered Steel Nickel Plated Copper Covered Steel
Conductor Diameter (29 AWG) .011 in .279 mm [1]
Insulation Material Over Conductor(s) Extruded TFE Extruded TFE
Shield Type Over Conductor(s) Braid: 90% Minimum Coverage Braid: 90% Minimum Coverage
Shield Material Over Conductor(s) Nickel Plated Wire Nickel Plated Wire
Shield Wire Diameter Over Conductor(s) (Each Strand 38 AWG) .063 1.60 [1]
Shield Type Over Bundle Braid: 90% Minimum Coverage Braid: 90% Minimum Coverage
Shield Material Over Bundle Tin Plated Copper Tin Plated Copper
Shield Wire Diameter Over Bundle (Each Strand 36 AWG) .10 in 2.54 mm [1]
Low Noise Barrier Material (Over Conductor) Liquid Graphite Liquid Graphite
Low Noise Barrier Material (Over Insulator) Graphite Impregnated PTFE Tape Graphite Impregnated PTFE Tape
Bend Radius (minimum) 2 in 50. mm
Weight .47 oz/ft 42.6 gm/m [1]

* All specifications are at room temperature unless otherwise specified.
