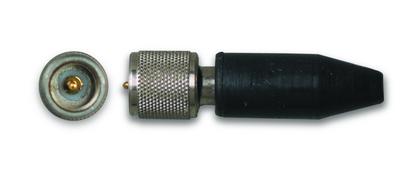

10-32 coaxial plug, strain relief boot

CABLE CONNECTOR

Model EB

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock	Lead Times
More on the way	Call for Lead Time

10-32 coaxial plug, strain relief boot

Protective Cap: 085A18

Connector Style: Coaxial
Connection Type: Plug (male pin)
Coupling Thread: 10-32 female
Temperature Range: -320 to 500 °F (-196 to 260 °C)

Specification Notes

[1] "56396"

	English:	SI:
Performance
Connector Style	Coaxial	Coaxial
Connection Type	Plug (male pin)	Plug (male pin)
Coupling Method	Threaded	Threaded
Coupling Thread	10-32 female	10-32 female
Strain Relief	Molded Boot	Molded Boot
Environmental
Temperature Range	-320 to 500 °F	-196 to 260 °C
Physical
ROHS Compliant	Yes	Yes
Size - OD	0.25 in	6.4 mm
Size - Length	0.94 in	24 mm
Weight	0.1 oz	2 gm

* All specifications are at room temperature unless otherwise specified.
