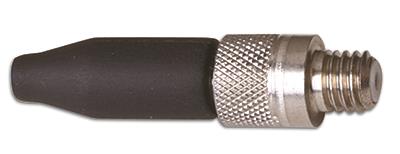

10-32 COAXIAL JACK

Model PH

  • IP

10-32 coaxial jack, low outgassing **Requires special tooling for assembly – No sales except PCB locations that have the tooling and procedures.**

Protective Cap: 085A09


  • Connector Style: Circular
  • Connector Style: Coaxial
  • Connection Type: Jack (female socket / recepticle)
  • Coupling Thread: 10-32 male
  • Temperature Range: -320 to +500 °F (-196 to +260 °C)

Specification Notes

[1] Materials selected for a TML of 1% or less and a CVCM of 0.1% or less.

English: SI:
Performance
Connector Style Circular Circular [1]
Connector Style Coaxial Coaxial
Connection Type Jack (female socket / recepticle) Jack (female socket / recepticle)
Coupling Method Threaded Threaded
Coupling Thread 10-32 male 10-32 male
Strain Relief Molded Boot Molded Boot [1]
Environmental
Temperature Range -320 to +500 °F -196 to +260 °C
Electrical
Insulation Resistance >1000000000000 Ohm >1000000000000 Ohm
Physical
Housing Material Stainless Steel Stainless Steel
Size - OD .28 in 7.1 mm
Size - Length 1.1 in 28 mm
Weight 0.1 oz 3.0 gm

* All specifications are at room temperature unless otherwise specified.
