Model : 740M04 | Uniaxial ICP® Strain Sensor

Call for lead time
$ 780.00 USD
(Pricing valid in US only!)

ICP® piezoelectric strain sensor, titanium hsg, 900 peak micro strain, 10 ft. attached cable

    Additional Configurations:

    RELATED PRODUCTS

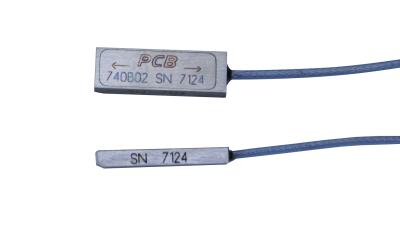

    740B02

    ICP® piezoelectric strain sensor, titanium hsg



    Add to Cart for Quote
    Add To Cart
    039A07

    Removal tool for 740 Series strain sensors



    Add to Cart for Quote
    Add To Cart
    070A02

    Scope input adaptor (10-32 jack to BNC plug)



    Add to Cart for Quote
    Add To Cart
    English: SI:
    Performance
    Sensitivity (±20 %) 5 mV/µε 5 mV/µε [4]
    Measurement Range 900 pk µε 900 pk µε
    Frequency Range 0.5 to 100000 Hz 0.5 to 100000 Hz [3]
    Broadband Resolution (1) 5.0 nε 5.0 nε [2]
    Non-Linearity ≤1.5 % ≤1.5 % [1] [5]
    Transverse Sensitivity ≤5 % ≤5 % [2]
    Environmental
    Overload Limit (Shock) ±10000 g pk ±98000 m/s² pk
    Temperature Range -65 to +250 °F -53 to +121 °C
    Acceleration Sensitivity 0.001 µε/g 0.0001 µε/(m/s²) [2] [6]
    Electrical
    Excitation Voltage 20 to 30 VDC 20 to 30 VDC
    Constant Current Excitation 2 to 20 mA 2 to 20 mA
    Output Bias Voltage 8 to 14 VDC 8 to 14 VDC
    Discharge Time Constant 1 to 3 sec 1 to 3 sec
    Spectral Noise (1 Hz) 1900 pε/√Hz 1900 pε/√Hz [2] [7]
    Spectral Noise (10 Hz) 600 pε/√Hz 600 pε/√Hz [2]
    Spectral Noise (100 Hz) 200 pε/√Hz 200 pε/√Hz [2]
    Spectral Noise (1 kHz) 60 pε/√Hz 60 pε/√Hz [2]
    Spectral Noise (10 kHz) 15 pε/√Hz 15 pε/√Hz [2]
    Physical
    Sensing Element Quartz Quartz
    Housing Material Titanium Titanium
    Sealing Epoxy Epoxy
    Size - Width 0.2 in 5.1 mm
    Size - Length 0.6 in 15.2 mm
    Size - Height 0.07 in 1.8 mm
    Weight 0.02 oz 0.5 gm [2]
    Electrical Connector 10-32 Coaxial Plug 10-32 Coaxial Plug
    Mounting Adhesive Adhesive
    Cable Length 10 ft 10 ft
    Cable Type 030 Coaxial 030 Coaxial
    * All specifications are at room temperature unless otherwise specified
    .


    Specification Notes


    [1] Zero-based, least-squares, straight line method.
    [2] Typical.
    [3] Based on cable drive of 100 ft at 30 pF/ft 20 mA excitation.
    [4] Calibrated on a steel bar at 100 με
    [5] Linearity to full range can be obtained only when bond strength of epoxy mounting adhesive is suitable.
    [2] Typical.
    [6] Measured perpendicular to sensing axis.
    [2] Typical.
    [7] Strain level equivalent.
    [2] Typical.
    [8] See PCB Declaration of Conformance PS023 for details.


    Accessories


    Supplied
    039A07 Removal tool for 740 Series strain sensors 1
    080A90 Quick bond Gel (for use with accel adhesive mtg bases to fill gaps on rough surfaces) 1
