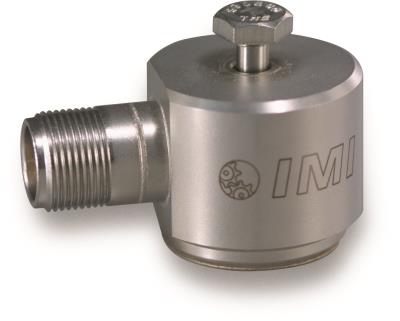

ACCELEROMETER

Model 625B01

Add to Quote
  • CE
  • IP

Platinum Stock Products; Ring-style, industrial, ceramic shear ICP® accel, 100 mV/g, 0.2 to 10.5k Hz, side exit, 2-pin conn., frequency sweep ISO 17025 accredited calibration

  • Sensitivity: (±5%) 100 mV/g (10.2 mV/(m/s²))
  • Frequency Range: (±3dB)12 to 630000 cpm (0.2 to 10500 Hz)
  • Sensing Element: Ceramic
  • Measurement Range: ±50 g (±490 m/s²)
  • Weight: 5.1 oz (145 gm)

Specification Notes

[1] Conversion Factor 1g = 9.81 m/s².
[2] Zero-based, least-squares, straight line method.
[3] The high frequency tolerance is accurate within ±10% of the specified frequency.
[4] Typical.
[5] 1/4-28 has no equivalent in S.I. units.
[6] See PCB Declaration of Conformance PS023 for details.

English: SI:
Performance
Sensitivity (±5 %) 100 mV/g 10.2 mV/(m/s²) [1]
Measurement Range ±50 g ±490 m/s²
Frequency Range (±5 %) 30 to 390000 cpm 0.5 to 6500 Hz [3]
Frequency Range (±10 %) 22 to 450000 cpm 0.37 to 7500 Hz
Frequency Range (±3 dB) 12 to 630000 cpm 0.2 to 10500 Hz
Resonant Frequency 1500 kcpm 25 kHz [4]
Broadband Resolution (1) 50 µg 491 µm/sec2 [4]
Non-Linearity ±1 % ±1 % [2]
Transverse Sensitivity ≤5 % ≤5 %
Environmental
Overload Limit (Shock) 5000 g pk 49050 m/s² pk
Temperature Range -65 to +250 °F -54 to +121 °C
Temperature Response See Graph %/°F See Graph %/°F [4]
Enclosure Rating IP68 IP68
Electrical
Settling Time (within 1% of bias) ≤8.0 sec ≤8.0 sec
Discharge Time Constant ≥1.0 sec ≥1.0 sec
Excitation Voltage 18 to 28 VDC 18 to 28 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance <100 Ohm <100 Ohm
Output Bias Voltage 8 to 12 VDC 8 to 12 VDC
Spectral Noise (10 Hz) 2.5 µg/√Hz 24.5 (µm/sec2)/√Hz [4]
Spectral Noise (100 Hz) 0.8 µg/√Hz 7.8 (µm/sec2)/√Hz [4]
Spectral Noise (1 kHz) 0.5 µg/√Hz 4.9 (µm/sec2)/√Hz [4]
Electrical Protection RFI/ESD RFI/ESD
Electrical Isolation (Case) >100000000 Ohm >100000000 Ohm
Physical
Size - Diameter 1.36 in 35.1 mm
Size - Height 1.13 in 28.7 mm
Weight 5.1 oz 145 gm
Mounting Through Hole Through Hole
Mounting Thread 1/4-28 Male Not Applicable [5]
Mounting Torque 2 to 5 ft-lb 2.7 to 6.8 Nm
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Stainless Steel Stainless Steel
Sealing Welded Hermetic Welded Hermetic
Electrical Connector 2-Pin MIL-C-5015 2-Pin MIL-C-5015
Electrical Connection Position Side Side

* All specifications are at room temperature unless otherwise specified.

TempChart

Accessories
Supplied
ICS-1 Calibration of industrial accel. with full frequency response plot and NIST-traceable certificate 1
080B45 Protective thermal boot for use with series 625 sensors 1
081A73 1/4-28 x 1.34" hex head captive thru bolt 1

Optional Versions

(CS) Canadian Standards Association Approved Intrinsically Safe

English SI
Hazardous Area Approval Cl I, Div I, Groups A, B, C, D; Cl II, Div I, Groups E, F, G; Cl III, Div I
Hazardous Area Approval Ex ia IIC T4, AExia IIC, T4
Hazardous Area Approval Cl I, Div 2, Groups A, B, C, D; ExnL IIC T4, AExnA IIC T4

(LB) Low Bias Voltage

English SI
Output Bias Voltage 6 to 8 VDC
Excitation Voltage 12 to 28 VDC
Measurement Range ±35 g ±343 m/s²
(M) Metric Mount
Accessories:
Supplied M081A73 Captive Mounting Bolt 1

(TO) Temperature Output

English SI
Temperature Output Range +36 to +250 °F +2 to +121 °C
Temperature Scale Factor 5.56 mV/°F + 32 +10 mV/°C
Electrical Connector 3-Pin
Electrical Connections Acceleration Output
Electrical Connections Ground
Electrical Connections Temperature Output
