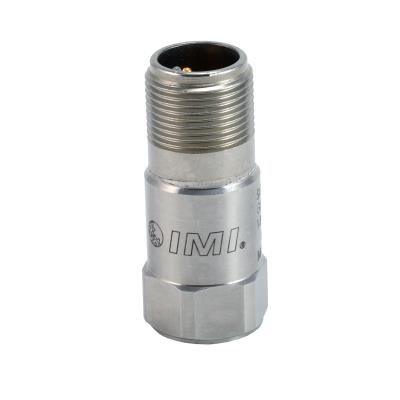

Model : 603C01 | Platinum Low-cost Industrial ICP® Accelerometer

Click for lead times
Lead Time for 26-200 is 4 Wks

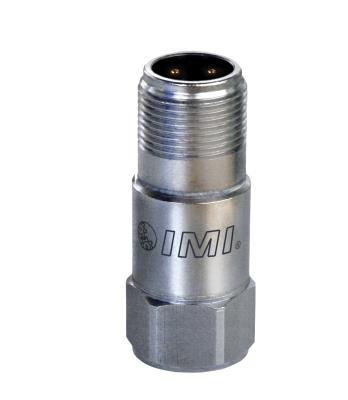

platinum stock products; general purpose, industrial, ceramic shear icp® accel, 100 mv/g, 0.5 to 10k hz, top exit, 2-pin conn., single point iso 17025 accredited calibration
$ 110.00 USD
(Pricing valid in US only!)

Platinum Stock Products; General purpose, industrial, ceramic shear ICP® accel, 100 mV/g, 0.5 to 10k Hz, top exit, 2-pin conn., single point ISO 17025 accredited calibration

The 603C01 ICP® is one model in a very diverse line of 603-Series accelerometers. The 603-Series includes alternative sensitivity models, hazardous area approved models, dual output models and models with an integral cable.

  • Sensitivity: (±10%)100 mV/g ( 10.2 mV/(m/s²))
  • Frequency Range: (±3dB)30 to 600000 cpm ( 0.5 to 10000 Hz)
  • Sensing Element: Ceramic
  • Measurement Range: ±50 g ( ±490 m/s²)
  • Weight: 1.8 oz ( 51 gm)

RELATED PRODUCTS



M081A61
M081A61

Mounting stud, 1/4-28 to M6x1 x 8.6 mm long, BeCu w/shoulder



Add to Cart for Quote
Add to Cart
080A93
080A93

Sensor mounting pad, adhesive or weld mount to machine, 0.75" diameter, 1/4-28 threaded hole for sensor mount



Add to Cart for Quote
Add to Cart
080A130
080A130

Curved surface magnet, 0.75" diameter, 15 lbf, 1/4-28 threaded hole w/mounting stud



Add to Cart for Quote
Add to Cart
080A178
080A178

Adhesive mtg base, 0.5" hex x 0.12" thk, 10-32 integral stud, aluminum w/ insulating hardcoat finish



Add to Cart for Quote
Add to Cart
508BR010BZ
508BR010BZ

10’ two-conductor, polyurethane-jacketed cable with two-socket MIL-C-5015 connector on one end and blunt cut on the other end 508BR010BZ



Add to Cart for Quote
Add to Cart
508BQ010BZ
508BQ010BZ

10’ two-conductor, polyurethane-jacketed cable with two-socket, right-angle MIL-C-5015 connector on one end and blunt cut on the other end 508BQ010BZ



Add to Cart for Quote
Add to Cart
M080A130
M080A130

Curved surface magnet, 19 mm diameter, 67 N, M6x1 threaded hole w/mounting stud



Add to Cart for Quote
Add to Quote
691A50/06
691A50/06

BNC termination box, 8" x 6" x 4" NEMA 4X (IP66) fiberglass enc, 6 channels, terminal strip input, BNC jack output, 6 PGME07 cord grips



Add to Cart for Quote
Add to Cart
682A02
682A02

DIN rail mount ICP® signal conditioner, 24 VDC input



Add to Cart for Quote
Add to Cart
English: SI:
Performance
Sensitivity (±10 %) 100 mV/g 10.2 mV/(m/s²) [ 1]
Measurement Range ±50 g ±490 m/s²
Frequency Range (±3 dB) 30 to 600000 cpm 0.5 to 10000 Hz [ 3]
Resonant Frequency 1500 kcpm 25 kHz [ 4]
Broadband Resolution (1) 350 µg 3434 µm/sec2 [ 4]
Non-Linearity ±1 % ±1 % [ 2]
Transverse Sensitivity ≤7 % ≤7 %
Environmental
Overload Limit (Shock) 5000 g pk 49050 m/s² pk
Temperature Range -65 to +250 °F -54 to +121 °C

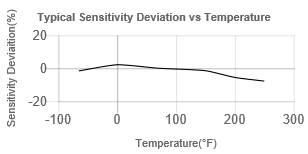

Temperature Response See Graph %/°F See Graph %/°F [ 4]
Enclosure Rating IP68 IP68
Electrical
Settling Time (within 1% of bias) ≤2.0 sec ≤2.0 sec
Discharge Time Constant ≥0.3 sec ≥0.3 sec
Excitation Voltage 18 to 28 VDC 18 to 28 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance <150 Ohm <150 Ohm
Output Bias Voltage 8 to 12 VDC 8 to 12 VDC
Broadband Electrical Noise (1 to 10000 Hz) 5 µV 5 µV [ 4]
Spectral Noise (10 Hz) 8 µg/√Hz 78.5 (µm/sec2)/√Hz [ 4]
Spectral Noise (100 Hz) 5 µg/√Hz 49.1 (µm/sec2)/√Hz [ 4]
Spectral Noise (1 kHz) 4 µg/√Hz 39.2 (µm/sec2)/√Hz [ 4]
Electrical Isolation (Case) >100000000 Ohm >100000000 Ohm
Physical
Size - Hex 11/16 in 18 mm
Size - Height 1.65 in 42.2 mm
Weight 1.8 oz 51 gm
Mounting Thread 1/4-28 Female No Metric Equivalent [ 5]
Mounting Torque 2 to 5 ft-lb 2.7 to 6.8 Nm
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Stainless Steel Stainless Steel
Sealing Welded Hermetic Welded Hermetic
Electrical Connector 2-Pin MIL-C-5015 2-Pin MIL-C-5015
Electrical Connection Position Top Top
* All specifications are at room temperature unless otherwise specified
.




Specification Notes


[ 1] Conversion Factor 1g = 9.81 m/s².
[ 2] Zero-based, least-squares, straight line method.
[ 3] The high frequency tolerance is accurate within ±10% of the specified frequency.
[ 4] Typical.
[ 5] 1/4-28 has no equivalent in S.I. units.
[ 6] See PCB Declaration of Conformance PS023 or PS060 for details.


Accessories


Supplied
081A40 Mounting stud, 1/4-28 x 0.438" long stainless steel screw with hex socket and brass tip 1
ICS-2 Calibration of industrial accel., single-point, 100 Hz reference sensitivity 1


Optional Versions


( EX ) Hazardous Area Approval- contact factory for specific approvals
English SI
Hazardous Area Approval EEx nL IIC T4, -40°C<=Ta<=121°C, II 1 G
Hazardous Area Approval Cl I, Div I, Groups A, B, C, D; Cl II, Div I, Groups E, F, G; Cl III, Div I
Hazardous Area Approval Ex ia IIC T4, AExia IIC, T4
Hazardous Area Approval Cl I, Div 2, Groups A, B, C, D; ExnL IIC T4, AExnA IIC T4
Hazardous Area Approval EEx nL IIC T4, -40°C<=Ta<=121°C, II 3 G


( M ) Metric Mount
Accessories:
Supplied M081A61 Mounting Stud 1


( TO ) Temperature Output
English SI
Temperature Output Range +36 to +250 °F +2 to +121 °C
Temperature Scale Factor 5.56 mV/°F + 32 +10 mV/°C
Electrical Connector 3-Pin MIL-C-5015
Electrical Connections Acceleration Output
Electrical Connections Temperature Output
Electrical Connections Ground
Size - Height 1.86 in 47.2
Weight 2.0 oz 56.7
