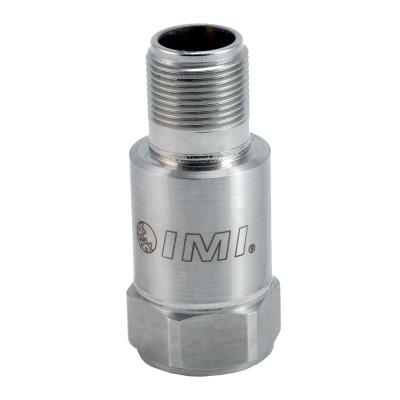

Model : 601A01 | Platinum Low-cost Industrial ICP® Accelerometer

Click for lead times
Lead Time for 11-25 is 3 Wks
platinum stock products; low-noise, industrial, ceramic shear icp® accel, 100 mv/g, 0.27 to 10k hz, top exit, 2-pin conn., single point iso 17025 accredited calibration
$ 200.00 USD
(Pricing valid in US only!)
66 units in stock

Platinum Stock Products; Low-noise, industrial, ceramic shear ICP® accel, 100 mV/g, 0.27 to 10k Hz, top exit, 2-pin conn., single point ISO 17025 accredited calibration

  • Sensitivity: (±20%) 100 mV/g ( 10.2 mV/(m/s²))
  • Frequency Range: (±3dB)16 to 600000 cpm ( 0.27 to 10000 Hz)
  • Sensing Element: Ceramic
  • Measurement Range: ±50 g ( ±490 m/s²)
  • Weight: 2.8 oz ( 80 gm)

RELATED PRODUCTS

080A118
080A118

Sensor mounting pad, adhesive or weld mount to machine, 1" diameter, 1/4-28 threaded hole for sensor mount



Add to Cart for Quote
Add to Cart
080A132
080A132

Curved surface magnet, 1.5" diameter, 55 lbf, 1/4-28 threaded hole w/mounting stud



Add to Cart for Quote
Add to Cart
508BR010BZ
508BR010BZ

10’ two-conductor, polyurethane-jacketed cable with two-socket MIL-C-5015 connector on one end and blunt cut on the other end 508BR010BZ



Add to Cart for Quote
Add to Cart
M081A61
M081A61

Mounting stud, 1/4-28 to M6x1 x 8.6 mm long, BeCu w/shoulder



Add to Cart for Quote
Add to Cart
English: SI:
Performance
Sensitivity (±20 %) 100 mV/g 10.2 mV/(m/s²) [ 1]
Measurement Range ±50 g ±490 m/s²
Frequency Range (±3 dB) 16 to 600000 cpm 0.27 to 10000 Hz [ 3]
Resonant Frequency 960 kcpm 16 kHz [ 4]
Broadband Resolution (1) 50 µg 491 µm/sec2 [ 4]
Non-Linearity ±1 % ±1 % [ 2]
Transverse Sensitivity ≤7 % ≤7 %
Environmental
Overload Limit (Shock) 5000 g pk 49050 m/s² pk
Temperature Range -65 to +250 °F -54 to +121 °C
Temperature Response See Graph %/°F See Graph %/°F [ 4]
Enclosure Rating IP68 IP68
Electrical
Settling Time (within 1% of bias) ≤4.0 sec ≤4.0 sec
Discharge Time Constant ≥0.6 sec ≥0.6 sec
Excitation Voltage 18 to 28 VDC 18 to 28 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance <150 Ohm <150 Ohm
Output Bias Voltage 8 to 12 VDC 8 to 12 VDC
Spectral Noise (10 Hz) 3.2 µg/√Hz 31.0 (µm/sec2)/√Hz [ 4]
Spectral Noise (100 Hz) 1.0 µg/√Hz 9.81 (µm/sec2)/√Hz [ 4]
Spectral Noise (1 kHz) 0.7 µg/√Hz 6.94 (µm/sec2)/√Hz [ 4]
Electrical Isolation (Case) >100000000 Ohm >100000000 Ohm
Physical
Size - Hex 7/8 in 22 mm
Size - Height 1.94 in 49.3 mm
Weight 2.8 oz 80 gm
Mounting Thread 1/4-28 Female Not Applicable [ 5]
Mounting Torque 2 to 5 ft-lb 2.7 to 6.8 Nm
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Stainless Steel Stainless Steel
Sealing Welded Hermetic Welded Hermetic
Electrical Connector 2-Pin MIL-C-5015 2-Pin MIL-C-5015
Electrical Connection Position Top Top
* All specifications are at room temperature unless otherwise specified
.




Specification Notes

[ 1] Conversion Factor 1g = 9.81 m/s².
[ 2] Zero-based, least-squares, straight line method.
[ 3] The high frequency tolerance is accurate within ±10% of the specified frequency.
[ 4] Typical.
[ 5] 1/4-28 has no equivalent in S.I. units.
[ 6] See PCB Declaration of Conformance PS023 for details.


Accessories
Supplied
081A40 Mounting stud, 1/4-28 x 0.438" long stainless steel screw with hex socket and brass tip 1


Optional Versions

( M ) Metric Mount
Accessories:
Supplied M081A61 Mounting Stud 1


( TO ) Temperature Output
English SI
Temperature Output Range +36 to +250 +2 to +121
Temperature Scale Factor 5.56 mV/°F + 32 +10 mV/°C
Electrical Connector 3-Pin
Electrical Connections Acceleration Output
Electrical Connections Ground
Electrical Connections Temperature Output
