triax force link, icp®, 1000 lb (fz), 500 lb (fx,y), 2.5 mv/lb (z), 10 mv/lb (x,y), ground isolated

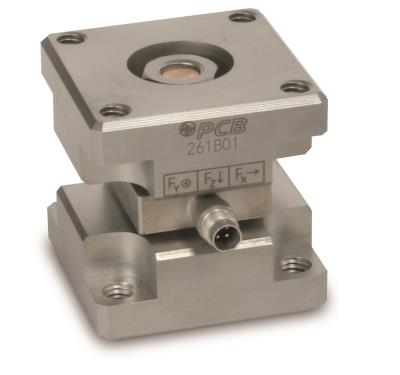

3-Component ICP® Force Sensor

Model 261B01

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock Lead Times
1 Call for Lead Time
  • CE
  • IP

Triax force link, ICP®, 1000 lb (Fz), 500 lb (Fx,y), 2.5 mV/lb (z), 10 mV/lb (x,y), ground isolated

WPL 88 - Improved Stiffness Specifications for Piezoelectric Force Links
  • Temperature Range: -65 to +250 °F (-54 to +121 °C)
  • Electrical Connector: 4-Pin

Specification Notes


[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] See PCB White Paper WPL_88_1121 for details.
[4] See PCB Declaration of Conformance PS023 for details.

English: SI:
Performance
Sensitivity (±20 %) (Z Axis) 2.5 mV/lb 0.56 mV/N
Sensitivity (±20 %) (X or Y Axis) 10 mV/lb 2.25 mV/N
Measurement Range (Z Axis) 1000 lb 4.45 kN
Measurement Range (X or Y Axis) 500 lb 2.22 kN
Maximum Force (Z Axis) 1320 lb 5.87 kN
Maximum Force (X or Y Axis) 660 lb 2.94 kN
Maximum Moment (Z Axis) 14 ft-lb 19.0 Nm
Maximum Moment (X or Y Axis) 13 ft-lb 17.6 Nm
Broadband Resolution (Z axis) 0.006 0.027 N-rms [2]
Broadband Resolution (X or Y axis) 0.002 0.0089 N-rms [2]
Low Frequency Response (-5 %) (Z-Axis) 0.01 Hz 0.01 Hz
Low Frequency Response (-5 %) (X or Y Axis) 0.001 Hz 0.001 Hz
Non-Linearity ≤1 % FS ≤1 % FS [1]
Cross Talk (between X and Y Axis) ±3 % ±3 %
Cross Talk (between (X or Y Axis) and Z Axis) ±5 % ±5 %
Environmental
Temperature Range -65 to +250 °F -54 to +121 °C
Electrical
Full Scale Output (Z Direction) ±2.5 VDC ±2.5 VDC
Full Scale Output (X and Y Direction) ±5 VDC ±5 VDC
Discharge Time Constant (Z Axis) ≥50 sec ≥50 sec
Discharge Time Constant (X or Y Axis) ≥500 sec ≥500 sec
Excitation Voltage (all channels) 20 to 30 VDC 20 to 30 VDC
Constant Current Excitation (all channels) 2 to 20 mA 2 to 20 mA
Output Impedance ≤100 Ohm ≤100 Ohm
Output Bias Voltage 8 to 14 VDC 8 to 14 VDC
Spectral Noise (1 Hz) 0.0003 lb/√Hz 0.00134 N/√Hz
Spectral Noise (10 Hz) 0.00015 lb/√Hz 0.000668 N/√Hz
Spectral Noise (100 Hz) 0.00005 lb/√Hz 0.000223 N/√Hz
Spectral Noise (1000 Hz) 0.000015 lb/√Hz 0.0000668 N/√Hz
Spectral Noise (1 Hz) 0.0015 lb/√Hz 0.0068 N/√Hz
Spectral Noise (10 Hz) 0.00055 lb/√Hz 0.00245 N/√Hz
Spectral Noise (100 Hz) 0.0002 lb/√Hz 0.000891 N/√Hz
Spectral Noise (1000 Hz) 0.000055 lb/√Hz 0.000245 N/√Hz
Output Polarity Positive Positive
Electrical Isolation ≥100000000 Ohm ≥100000000 Ohm
Physical
Stiffness (X or Y Axis) 1.9 lb/µin 330 N/µm [2]
Stiffness (Z Axis) 4.9 lb/µin 860 N/µm [2]
Stiffness (RX or RY Axis) 7.5E5 lbf*in/radian 8.5E4 N*m/radian [2] [3]
Stiffness (RZ Axis) 3.4E5 lbf*in/radian 3.8E4 N*m/radian [2] [3]
Coupled Stiffness (X-RY or Y-RX Axis) 1.0 lbf*in/µin 4.4 N*m/µm [2] [3]
Weight 13.60 oz 386 gm
Housing Material Stainless Steel Stainless Steel
Sealing Hermetic Hermetic
Electrical Connector 4-Pin 4-Pin
Electrical Connection Position Side Side

* All specifications are at room temperature unless otherwise specified.

Optional Versions


(W) Water Resistant Cable

English SI
Electrical Connection Position Side
