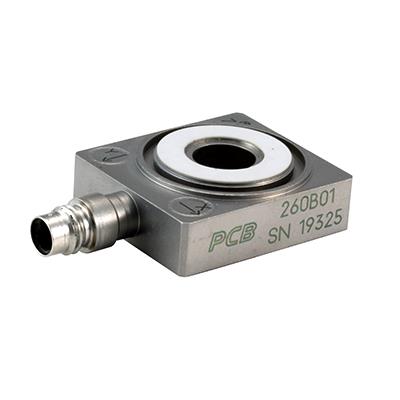

| Performance |
| Sensitivity (±20 %) (Z Axis) |
2.5 mV/lb |
0.56 mV/N |
[3]
|
| Sensitivity (±20 %) (X or Y Axis) |
10 mV/lb |
2.25 mV/N |
[3]
|
| Measurement Range (Z Axis) |
1000 lb |
4.45 kN |
|
| Measurement Range (X or Y Axis) |
500 lb |
2.22 kN |
|
| Maximum Force (Z Axis) |
1320 lb |
5.87 kN |
|
| Maximum Force (X or Y Axis) |
660 lb |
2.94 kN |
|
| Maximum Moment (Z Axis) |
16 ft-lb |
21.7 Nm |
|
| Maximum Moment (X or Y Axis) |
37 ft-lb |
50.2 Nm |
|
| Broadband Resolution (z axis) |
0.006 lb-rms |
0.027 N-rms |
[2]
|
| Broadband Resolution (x or y axis) |
0.002 lb-rms |
0.0089 N-rms |
[2]
|
| Low Frequency Response (-5 %) (Z-Axis) |
0.01 Hz |
0.01 Hz |
|
| Low Frequency Response (-5 %) (X or Y Axis) |
0.001 Hz |
0.001 Hz |
|
| Non-Linearity |
≤1 % FS |
≤1 % FS |
[1]
|
| Cross Talk (between X and Y Axis) |
±3 % |
±3 % |
|
| Cross Talk (between (X or Y Axis) and Z Axis) |
±5 % |
±5 % |
|
| Environmental |
| Temperature Range |
-65 to +250 °F |
-54 to +121 °C |
|
| Electrical |
| Full Scale Output (Z Direction) |
±2.5 VDC |
±2.5 VDC |
|
| Full Scale Output (X and Y Direction) |
±5 VDC |
±5 VDC |
|
| Discharge Time Constant (Z Axis) |
≥50 sec |
≥50 sec |
|
| Discharge Time Constant (X or Y Axis) |
≥500 sec |
≥500 sec |
|
| Excitation Voltage (all channels) |
20 to 30 VDC |
20 to 30 VDC |
|
| Constant Current Excitation (all channels) |
2 to 20 mA |
2 to 20 mA |
|
| Output Impedance |
≤100 Ohm |
≤100 Ohm |
|
| Output Bias Voltage |
8 to 14 VDC |
8 to 14 VDC |
|
| Spectral Noise (1 Hz) |
0.0003 lb/√Hz |
0.00134 N/√Hz |
|
| Spectral Noise (10 Hz) |
0.00015 lb/√Hz |
0.000668 N/√Hz |
|
| Spectral Noise (100 Hz) |
0.00005 lb/√Hz |
0.000223 N/√Hz |
|
| Spectral Noise (1000 Hz) |
0.000015 lb/√Hz |
0.0000668 N/√Hz |
|
| Spectral Noise (1 Hz) |
0.0015 lb/√Hz |
0.00668 N/√Hz |
|
| Spectral Noise (10 Hz) |
0.00055 lb/√Hz |
0.00245 N/√Hz |
|
| Spectral Noise (100 Hz) |
0.0002 lb/√Hz |
0.000891 N/√Hz |
|
| Spectral Noise (1000 Hz) |
0.000055 lb/√Hz |
0.000245 N/√Hz |
|
| Output Polarity |
Positive |
Positive |
|
| Electrical Isolation |
≥100000000 Ohm |
≥100000000 Ohm |
|
| Physical |
| Preload |
5000 lb |
22.24 kN |
[4]
|
| Stiffness (X or Y Axis) |
2.5 lb/µin |
440 N/µm |
[2]
[5]
|
| Stiffness (Z Axis) |
10.0 lb/µin |
1.755 N/µm |
[2]
[5]
|
| Stiffness (RX or RY Axis) |
4.1E5 lbf*in/radian |
4.6E4 N*m/radian |
[2]
[5]
|
| Stiffness (RZ Axis) |
4.7E5 lbf*in/radian |
5.3E4 N*m/radian |
[2]
[5]
|
| Coupled Stiffness |
0.3 lbf*in/µin |
1.3 N*m/µm |
[2]
[5]
|
| Weight |
.937 oz |
26.57 gm |
|
| Housing Material |
Stainless Steel |
Stainless Steel |
|
| Sealing |
Hermetic |
Hermetic |
|
| Electrical Connector |
4-Pin |
4-Pin |
|
| Electrical Connection Position |
Side |
Side |
|
