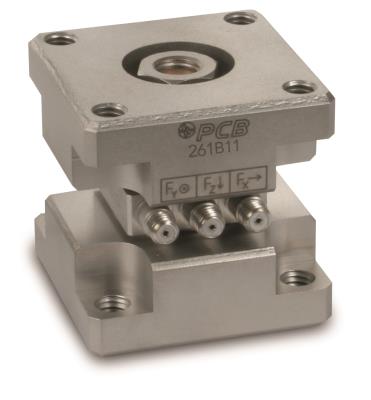

Model : 261B11 | 3-Component Charge Output Force Sensor

Click for lead times
triax force link, 1000 lb  (fz), 500  lb  (fx,y), 15 pc/lb (z), 32 pc/lb (x,y), charge output, ground isolated
Add to Cart for Quote

Triax force link, 1000 lb (Fz), 500 lb (Fx,y), 15 pC/lb (z), 32 pC/lb (x,y), charge output, ground isolated

  • Temperature Range: -100 to +350 °F ( -73 to +177 °C)
  • Electrical Connector: 10-32 Coaxial Jack ( 10-32 Coaxial Jack)

RELATED PRODUCTS



261B01
261B01

Triax force link, ICP®, 1000 lb (Fz), 500 lb (Fx,y), 2.5 mV/lb (z), 10 mV/lb (x,y), ground isolated



Add to Cart for Quote
Add to Quote
003C20
003C20

Low-noise coaxial cable, blue TFE jacket, 20-ft, 10-32 coaxial plug to BNC plug



Add to Cart for Quote
Add to Cart
English: SI:
Performance
Sensitivity (±10 %) (Z Axis) 15 pC/lb 3.37 pC/N [ 2]
Sensitivity (±10 %) (X or Y Axis) 32 pC/lb 7.19 pC/N [ 2]
Measurement Range (Z Axis) 1000 lb 4.45 kN
Measurement Range (X or Y Axis) 500 lb 2.22 kN
Maximum Force (Z Axis) 1320 lb 5.87 kN
Maximum Force (X or Y Axis) 660 lb 2.94 kN
Maximum Moment (Z Axis) 14 ft-lb 18.98 Nm
Maximum Moment (X or Y Axis) 13 ft-lb 17.63 Nm
Upper Frequency Limit 10000 Hz 10000 Hz
Non-Linearity ≤1 % FS ≤1 % FS [ 1]
Cross Talk (between X and Y Axis) ±3 % ±3 %
Cross Talk (between (X or Y axis) and Z axis) ±5 % ±5 %
Environmental
Temperature Range -100 to +350 °F -73 to +177 °C
Electrical
Capacitance (all channels) 18 pF 18 pF [ 3]
Insulation Resistance (all channels) ≥1000000000000 Ohm ≥1000000000000 Ohm
Output Polarity (in direction of markings) Negative Negative
Electrical Isolation ≥100000000 Ohm ≥100000000 Ohm
Physical
Stiffness (z axis) (sensing element) 10 lb/µin 1.75 kN/µm [ 3]
Stiffness (x or y axis) (sensing element) 4 lb/µin 0.7 kN/µm [ 3]
Stiffness (z axis) (link) 6.5 lb/µin 1.14 kN/µm [ 3]
Stiffness (x or y axis) (link) 2.2 lb/µin 0.39 kN/µm [ 3]
Weight 13.60 oz 386 gm
Housing Material Stainless Steel Stainless Steel
Sealing Hermetic Hermetic
Electrical Connector (Quantity, 3) 10-32 Coaxial Jack 10-32 Coaxial Jack
Electrical Connection Position Side Side
* All specifications are at room temperature unless otherwise specified
.




Specification Notes


[ 1] Zero-based, least-squares, straight line method.
[ 2] Sensitivites are for listed preload. Sensitivites may vary ±5% depending on preload used.
[ 3] Typical.
[ 4] See PCB Declaration of Conformance PS158 for details.
