triax force sensor, charge, 1000 lb (fz), 500 lb (fx,y), 15 pc/lb (z), 32 pc/lb (x, y), ground isolated

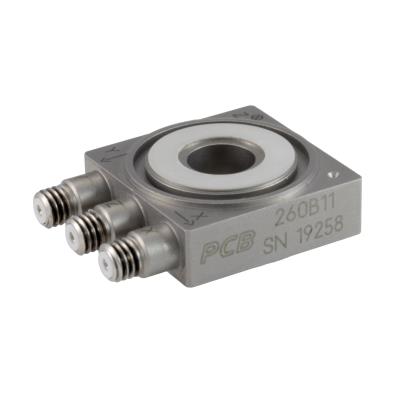

TRIAX FORCE SENSOR

Model 260B11

Add to Quote
  • CE
  • IP

Triax force sensor, charge, 1000 lb (Fz), 500 lb (Fx,y), 15 pC/lb (z), 32 pC/lb (x, y), ground isolated

  • Temperature Range: -100 to +350 °F (-73 to +177 °C)
  • Electrical Connector: 10-32 Coaxial Jack

Specification Notes

[1] Zero-based, least-squares, straight line method.
[2] Sensitivities are dependent upon supplied bolt.
[3] Typical.
[4] Preload should be at least 10 times the X and Y operating range used.
[5] See PCB White Paper WPL_88_1121 for details.
[6] See PCB Declaration of Conformance PS158 for details.

English: SI:
Performance
Sensitivity (±15 %) (Z Axis) 15 pC/lb 3.37 pC/N [2]
Sensitivity (±15 %) (X or Y Axis) 32 pC/lb 7.19 pC/N [2]
Measurement Range (Z Axis) 1000 lb 4.45 kN
Measurement Range (X or Y Axis) 500 lb 2.22 kN
Maximum Force (Z Axis) 1320 lb 5.87 kN
Maximum Force (X or Y Axis) 660 lb 2.94 kN
Maximum Moment (Z Axis) 16 ft-lb 21.7 Nm
Maximum Moment (X or Y Axis) 37 ft-lb 50.2 Nm
Non-Linearity ≤1 % FS ≤1 % FS [1]
Cross Talk (between X and Y Axis) ±3 % ±3 %
Cross Talk (between (X or Y Axis) and Z Axis) ±5 % ±5 %
Environmental
Temperature Range -100 to +350 °F -73 to +177 °C
Electrical
Capacitance (all channels) 18 pF 18 pF [3]
Insulation Resistance (all channels) ≥1000000000000 Ohm ≥1000000000000 Ohm
Output Polarity (in direction of markings) Negative Negative
Electrical Isolation ≥100000000 Ohm ≥100000000 Ohm
Physical
Preload ≤5000 lb ≤22.24 kN [4]
Stiffness (X or Y Axis) 2.5 lb/µin 440 N/µm [3] [5]
Stiffness (Z Axis) 10.0 lb/µin 1755 N/µm [3] [5]
Stiffness (RX or RY Axis) 4.1E5 lbf*in/radian 4.6E4 N*m/radian [3] [5]
Stiffness (RZ Axis) 4.7E5 lbf*in/radian 5.3E4 N*m/radian [3] [5]
Coupled Stiffness 0.3 lbf*in/µin 1.3 N*m/µm [3] [5]
Weight 0.850 oz 24.10 gm
Housing Material Stainless Steel Stainless Steel
Sealing Hermetic Hermetic
Electrical Connector (Quantity, 3) 10-32 Coaxial Jack 10-32 Coaxial Jack
Electrical Connection Position Side Side

* All specifications are at room temperature unless otherwise specified.

Accessories
Supplied
081A70 Pre-load bolt (for Models 260A01, 260A11, & 260A31) 1
082B02 Anti-friction washer for Models (M)202B, (M)212B, (M)260A01, (M)260A11 & (M)260A31 1
083A10 Pilot bushing (for Models 260A01, 260A11 & 260A31) 1
M081A70 Pre-load bolt (for Models 260A01, 260A11 & 260A31) 1

Optional Versions

(W) Water Resistant Cable

English SI
Electrical Connection Position Side
Electrical Connection Position Side
