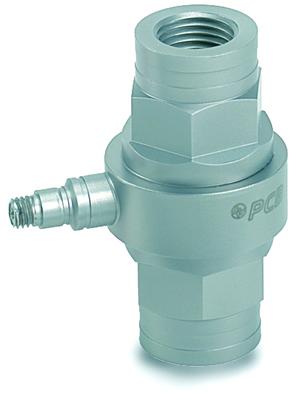

Model : 223B | Force Sensor, ICP®

Click for lead times
link icp® quartz force sensor, 12k lb comp., 4k lb tension, 0.42 mv/lb
Add to Cart for Quote

Link ICP® quartz force sensor, 12k lb comp., 4k lb tension, 0.42 mV/lb

  • Measurement Range: 12000 lb ( 53.38 kN)
  • Sensitivity: (±15%)0.42 mV/lb ( 94.42 mV/kN)
  • Low Frequency Response: (-5%)0.0003 Hz
  • Upper Frequency Limit: 10000 Hz
  • Temperature Range: -65 to +250 °F ( -54 to +121 °C)
  • Mounting Thread: 1/2 - 20 Female

RELATED PRODUCTS



410C01
410C01

ICP® sensor signal cond., 35mm DIN-rail mount, peak track hold and waveform analog output, AC/DC coupling, gain, setup configurable via USB or Ethernet communications.



Add to Cart for Quote
Add to Cart
002C10
002C10

General purpose coaxial cable, white FEP jacket, 10-ft, 10-32 plug to BNC plug



Add to Cart for Quote
Add to Cart
English: SI:
Performance
Sensitivity (±15 %) 0.42 mV/lb 94.42 mV/kN
Measurement Range (Compression) 12000 lb 53.38 kN
Measurement Range (Tension) 4000 lb 17.79 kN
Maximum Static Force (Compression) 12500 lb 55.60 kN
Maximum Static Force (Tension) 4500 lb 20.02 kN
Broadband Resolution (1) 0.40 lb-rms 1.78 N-rms [ 2]
Low Frequency Response (-5 %) 0.0003 Hz 0.0003 Hz [ 3]
Upper Frequency Limit 10000 Hz 10000 Hz [ 4]
Non-Linearity ≤1.5 % FS ≤1.5 % FS [ 1]
Environmental
Temperature Range -65 to +250 °F -54 to +121 °C
Temperature Coefficient of Sensitivity ≤0.03 %/°F ≤0.054 %/°C
Electrical
Discharge Time Constant (at room temp) ≥2000 sec ≥2000 sec
Excitation Voltage 20 to 30 VDC 20 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤100 Ohm ≤100 Ohm
Output Bias Voltage 8 to 14 VDC 8 to 14 VDC
Output Polarity (Compression) Positive Positive
Physical
Stiffness 4 lb/µin 0.70 kN/µm [ 2]
Size - Diameter 1.10 in 27.94 mm
Size - Height 2.00 in 50.8 mm
Weight 4.2 oz 120 gm
Housing Material Stainless Steel Stainless Steel
Sealing Hermetic Hermetic
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Electrical Connection Position Side Side
Mounting Thread 1/2 - 20 Female 1/2 - 20 Female
* All specifications are at room temperature unless otherwise specified
.




Specification Notes


[ 1] Zero-based, least-squares, straight line method.
[ 2] Typical.
[ 3] Calculated from discharge time constant.
[ 4] Estimated using rigid body dynamics calculations.
[ 2] Typical.
[ 5] See PCB Declaration of Conformance PS023 for details.


Optional Versions


( M ) Metric Mount


( N ) Negative Output Polarity


( W ) Water Resistant Cable
English SI
Electrical Connector Sealed Cable
Electrical Connection Position Side
