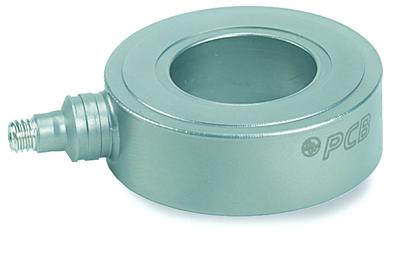

icp® quartz force ring, 60k lb comp., 0.08 mv/lb

Force Sensor, ICP®

Model 205C

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock Lead Times
More on the way Lead Time for 1-5 is 10 Wks.
  • CE
  • IP

ICP® quartz force ring, 60k lb comp., 0.08 mV/lb

  • Measurement Range: 60000 lb (266.9 kN)
  • Sensitivity: (±15%)0.08 mV/lb (18.0 mV/kN)
  • Low Frequency Response: 0.0003 Hz
  • Upper Frequency Limit: 50000 Hz
  • Temperature Range: -65 to +250 °F (-54 to +121 °C)

Specification Notes


[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Calculated from discharge time constant.
[4] Estimated using rigid body dynamics calculations.
[2] Typical.
[5] See PCB Declaration of Conformance PS023 for details.

English: SI:
Performance
Sensitivity (±15 %) 0.08 mV/lb 18.0 mV/kN
Measurement Range (Compression) 60000 lb 266.9 kN
Maximum Static Force (Compression) 70000 lb 311.4 kN
Broadband Resolution (1) 1 lb-rms 4.45 N-rms [2]
Low Frequency Response 0.0003 Hz 0.0003 Hz [3]
Upper Frequency Limit 50000 Hz 50000 Hz [4]
Non-Linearity ≤1.5 % FS ≤1.5 % FS [1]
Environmental
Temperature Range -65 to +250 °F -54 to +121 °C
Temperature Coefficient of Sensitivity ≤0.10 %/°F ≤0.18 %/°C
Electrical
Discharge Time Constant (at room temp) ≥2000 sec ≥2000 sec
Excitation Voltage 20 to 30 VDC 20 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤100 Ohm ≤100 Ohm
Output Bias Voltage 8 to 14 VDC 8 to 14 VDC
Spectral Noise (1 Hz) 0.0981 lb/√Hz 0.44 N/√Hz [2]
Spectral Noise (10 Hz) 0.0306 lb/√Hz 0.14 N√Hz [2]
Spectral Noise (100 Hz) 0.00709 lb/√Hz 0.032 N/√Hz [2]
Spectral Noise (1000 Hz) 0.00192 lb/√Hz 0.00857 N/√Hz [2]
Output Polarity (Compression) Positive Positive
Physical
Preload 12000 lb 53.379 kN
Stiffness 40 lb/µin 7 kN/µm [2]
Size - Diameter 1.580 in 40.13 mm
Size - Height 0.510 in 12.95 mm
Size - Bolt Diameter .75 in 20 mm
Size - ID (Hole Diameter) 0.830 in 21.08 mm
Size - OD (Sensor) 1.580 in 40.13 mm
Size - Sensing Surface 1.375 in 34.93 mm
Weight 2.7 oz 77 gm
Housing Material Stainless Steel Stainless Steel
Sealing Hermetic Hermetic
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Electrical Connection Position Side Side

* All specifications are at room temperature unless otherwise specified.

Accessories


Supplied
080A82 Assembly lubricant (for Series 201-207 force rings) 1
081A15 Mounting stud, 5/8-18 x 1.650", BeCu for Models 205C & 215B 1
082B05 Anti-friction washer for Models (M)205C & (M)215B 1
083B05 Pilot bushing for Models 205C & 215B 1

Optional Versions


(M) Metric Mount
Accessories:
Supplied M081A15 Mounting Stud, M16 x 1.50 x 1.650, BeCu 1
Supplied M083B05 Pilot Bushing 1

(W) Water Resistant Cable

English SI
Electrical Connector Sealed Cable
Electrical Connection Position Side
