triple splice assembly with (3) 1-ft coaxial cables each with a bnc plug (ac connector), 4-conductor shield grounded

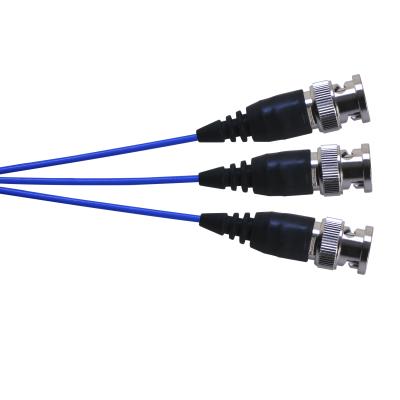

TRIPLE SPLICE, BNC PLUG W/ SHIELD GND

Model NF

Add to Quote
  • IP

Triple splice assembly with (3) 1-ft coaxial cables each with a BNC plug (AC connector), 4-conductor shield grounded

See Model JW for a non-grounded shield triple splice assembly.


Protective Cap: 085A35


  • Connector Style: Triple Splice
  • Connector Style: BNC
  • Connection Type: Plug (male pin)
  • Temperature Range: -40 to +176 °F (-40 to +80 °C)

Specification Notes

English: SI:
Performance
Connector Style Triple Splice Triple Splice
Connector Style BNC BNC
Connection Type Plug (male pin) Plug (male pin)
Coupling Method Bayonet Bayonet
Strain Relief Heat Shrink Heat Shrink
Environmental
Temperature Range -40 to +176 °F -40 to +80 °C
Physical
Electrical Connections (Red) X axis X axis
Electrical Connections (Green) Y axis Y axis
Electrical Connections (White) Z axis Z axis
Electrical Connections (Black) Shield Shield
Electrical Connections (Shield) Shield Shield
ROHS Compliant No No
Housing Material Brass Brass
Finish Nickel Coated Nickel Coated
Size - Length 12 in 30.5 mm

* All specifications are at room temperature unless otherwise specified.
