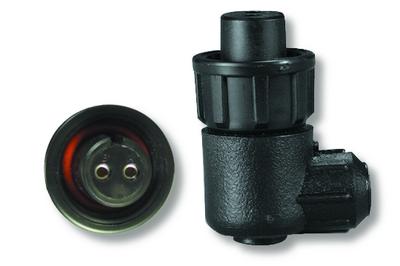

2-socket, molded composite, right angle connector (mil-c-5015 compatible) - *molded connector, not for individual sale

Cable Connector

Model BQ

  • IP

2-socket, molded composite, right angle connector (MIL-C-5015 compatible) - *Molded connector, not for individual sale

  • Connector Style: MIL-C-5015
  • Connector Style: Right Angle
  • Connection Type: 2-socket
  • Connection Type: Jack (female socket / recepticle)
  • Coupling Thread: 5/8-24 female
  • Temperature Range: -320 to +250 °F (-196 to +121 °C)

Specification Notes


English: SI:
Performance
Connector Style MIL-C-5015 MIL-C-5015
Connector Style Right Angle Right Angle
Connection Type 2-socket 2-socket
Connection Type Jack (female socket / recepticle) Jack (female socket / recepticle)
Coupling Method Threaded Threaded
Coupling Thread 5/8-24 female 5/8-24 female
Strain Relief Molded Boot Molded Boot
Environmental
Temperature Range -320 to +250 °F -196 to +121 °C
Physical
Size - OD 0.83 in 21.08 mm
Size - Length 1.16 in 29.64 mm
Size - Height 1.53 in 38.86 mm
Weight 0.39 oz 11.04 gm

* All specifications are at room temperature unless otherwise specified.
