2-socket mil with ext strain relief

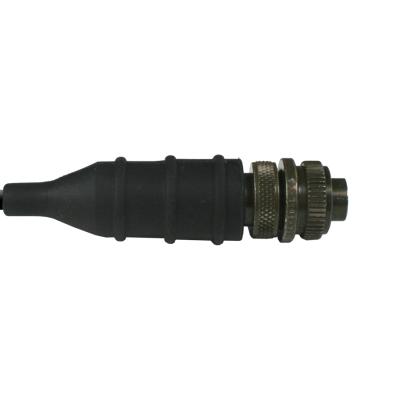

2-SOCKET MIL WITH EXT STRAIN RELIEF

Model LQ

2-socket MIL with ext strain relief

Connector Style: MIL-C-5015
Connector Style: Multi-conductor
Connection Type: 2-socket
Connection Type: Jack (female socket / recepticle)
Coupling Thread: 5/8-24 female
Temperature Range: -67 to +250 °F (-55 to +121 °C)

Specification Notes

[1] Typical.

	English:	SI:
Performance
Connector Style	MIL-C-5015	MIL-C-5015
Connector Style	Multi-conductor	Multi-conductor
Connection Type	2-socket	2-socket
Connection Type	Jack (female socket / recepticle)	Jack (female socket / recepticle)
Coupling Method	Threaded	Threaded
Coupling Thread	5/8-24 female	5/8-24 female
Strain Relief	Molded Boot	Molded Boot
Environmental
Temperature Range	-67 to +250 °F	-55 to +121 °C
Physical
ROHS Compliant	No	No
Housing Material	Aluminum Alloy	Aluminum Alloy
Finish	Olive Drab Chromate Over Cadmium	Olive Drab Chromate Over Cadmium
Size - OD	0.89 in	22.61 mm
Size - Length	3.40 in	86.36 mm
Weight	1.4 oz	40.7 gm	[1]

* All specifications are at room temperature unless otherwise specified.
