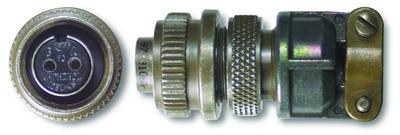

2-socket, high temperature ms3106 connector w/strain relief (meets mil-c-5015)

Cable Connector

Model BP

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock	Lead Times
More on the way	Lead Time for 1-15 is 14 Dys. Lead Time for 16-30 is 3 Wks.

2-socket, high temperature MS3106 connector w/strain relief (meets MIL-C-5015)

Connector Style: MIL-C-5015
Connector Style: Multi-conductor
Connection Type: 2-socket
Connection Type: Jack (female socket / recepticle)
Coupling Thread: 5/8-24 female
Temperature Range: -320 to +325 °F (-196 to +163 °C)

Specification Notes

	English:	SI:
Performance
Connector Style	MIL-C-5015	MIL-C-5015
Connector Style	Multi-conductor	Multi-conductor
Connection Type	2-socket	2-socket
Connection Type	Jack (female socket / recepticle)	Jack (female socket / recepticle)
Coupling Method	Threaded	Threaded
Coupling Thread	5/8-24 female	5/8-24 female
Strain Relief	Clamp	Clamp
Environmental
Temperature Range	-320 to +325 °F	-196 to +163 °C
Physical
ROHS Compliant	Yes	Yes
Size - OD	0.87 in	22 mm
Size - Length	1.78 in	45.21 mm
Weight	1.19 oz	33.87 gm

* All specifications are at room temperature unless otherwise specified.
