Model : M206C | Force Sensor, ICP®

Click for lead times
Lead Time for 1-3 is 10 Wks
$ 1,441.00 USD
(Pricing valid in US only!)
Datasheet

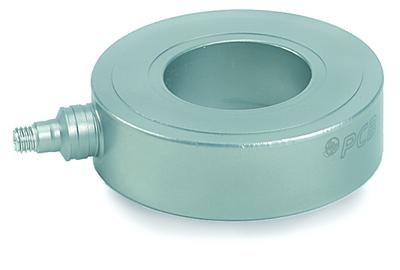

ICP® quartz force ring, 80k lb comp., 0.06 mV/lb, Metric

  • Measurement Range: 80000 lb (355.86 kN)
  • Sensitivity: (±15%)0.06 mV/lb (13.5 mV/kN)
  • Low Frequency Response: (-5%)0.0003 Hz
  • Upper Frequency Limit: 40000 Hz
  • Temperature Range: -65 to +250 °F (-54 to +121 °C)

RELATED PRODUCTS

410C01

ICP® sensor signal cond., 35mm DIN-rail mount, peak track hold and waveform analog output, AC/DC coupling, gain, setup configurable via USB or Ethernet communications.



Add to Cart for Quote
Add To Cart
English: SI:
Performance
Sensitivity (±15 %) 0.06 mV/lb 13.5 mV/kN
Measurement Range (Compression) 80000 lb 355.86 kN
Maximum Static Force (Compression) 90000 lb 400.34 kN
Broadband Resolution (1) 1.8 lb-rms 8.0 N-rms [2]
Low Frequency Response (-5 %) 0.0003 Hz 0.0003 Hz [3]
Upper Frequency Limit 40000 Hz 40000 Hz [4]
Non-Linearity ≤1 % FS ≤1 % FS [1]
Environmental
Temperature Range -65 to +250 °F -54 to +121 °C
Temperature Coefficient of Sensitivity ≤0.11 %/°F ≤0.198 %/°C
Electrical
Discharge Time Constant (at room temp) ≥2000 sec ≥2000 sec
Excitation Voltage 20 to 30 VDC 20 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤100 Ohm ≤100 Ohm
Output Bias Voltage 8 to 14 VDC 8 to 14 VDC
Spectral Noise (1 Hz) 0.16 lb/√Hz 0.71 N/√Hz [2]
Spectral Noise (10 Hz) 0.050 lb/√Hz 0.22 N√Hz [2]
Spectral Noise (100 Hz) 0.014 lb/√Hz 0.0625 N/√Hz [2]
Spectral Noise (1000 Hz) 0.0036 lb/√Hz 0.0160 N/√Hz [2]
Output Polarity (Compression) Positive Positive
Physical
Preload 16000 lb 71.172 kN
Stiffness 74 lb/µin 13 kN/µm [2]
Size - Diameter 2.05 in 52.1 mm
Size - Height 0.590 in 15 mm
Size - Bolt Diameter 1 in 24 mm
Size - ID (Hole Diameter) 1.025 in 26 mm
Size - OD (Sensor) 2.05 in 52 mm
Size - Sensing Surface 1.750 in 44.4 mm
Weight 5.5 oz 155 gm
Housing Material Stainless Steel Stainless Steel
Sealing Hermetic Hermetic
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Electrical Connection Position Side Side
* All specifications are at room temperature unless otherwise specified
.


Specification Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Calculated from discharge time constant.
[4] Estimated using rigid body dynamics calculations.
[2] Typical.
[5] See PCB Declaration of Conformance PS023 for details.


Accessories
Supplied
080A82 Assembly lubricant (for Series 201-207 force rings) 1
081A16 Mounting stud, 7/8-14 x 1.900", BeCu (for Models 206C & 216B) 1
082B06 Anti-friction washer (for Models 206C, 216B, 260A03, 260A13, & 260A33) 1
083B06 Pilot bushing (for Models 206C & 216B) 1


Optional Versions

( M ) Metric Mount
Accessories:
Supplied M081A16 Mounting Stud, M22 x 2.00 x 1.900, BeCu 1
Supplied M083B06 Pilot Bushing 1


( N ) Negative Output Polarity


( W ) Water Resistant Cable
English SI
Electrical Connector Sealed Cable
Electrical Connection Position Side
