miniature 4-socket 8-36 plug (mates to hj connector)   **requires special tooling for assembly – no sales except pcb locations that have the tooling and procedures.**

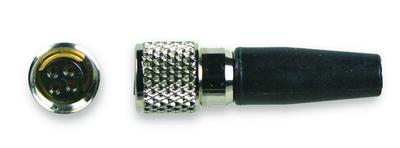

CABLE CONNECTOR

Model EH

  • IP

miniature 4-socket 8-36 plug (mates to HJ connector) **Requires special tooling for assembly – No sales except PCB locations that have the tooling and procedures.**

  • Connector Style: Multi-conductor
  • Connection Type: 4-socket
  • Connection Type: Plug with Female Contact
  • Temperature Range: -65 to 356 °F (-54 to 180 °C)

Specification Notes


English: SI:
Performance
Connector Style Multi-conductor Multi-conductor
Connection Type 4-socket 4-socket
Connection Type Plug with Female Contact Plug with Female Contact
Coupling Method Threaded Threaded
Strain Relief Molded Boot Molded Boot
Environmental
Temperature Range -65 to 356 °F -54 to 180 °C
Physical
Housing Material Brass Brass
Size - OD 0.20 in 5 mm
Size - Length 0.69 in 18 mm
Weight 0.03 0.80 gm

* All specifications are at room temperature unless otherwise specified.
