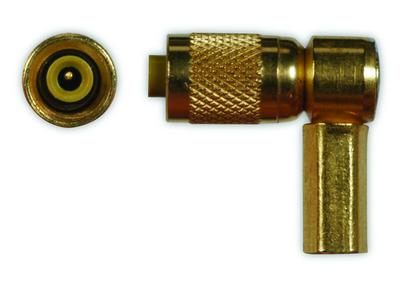

5-44 coaxial right angle plug

CABLE CONNECTOR

Model AF

  • IP

5-44 coaxial right angle plug

  • Connector Style: Coaxial
  • Connector Style: Right Angle
  • Connection Type: Plug (male pin)
  • Coupling Thread: 5-44 female
  • Temperature Range: -85 to 392 °F (-65 to 200 °C)

Specification Notes


English: SI:
Performance
Connector Style Coaxial Coaxial
Connector Style Right Angle Right Angle
Connection Type Plug (male pin) Plug (male pin)
Coupling Method Threaded Threaded
Coupling Thread 5-44 female 5-44 female
Strain Relief Heat Shrink Heat Shrink
Environmental
Temperature Range -85 to 392 °F -65 to 200 °C
Electrical
Impedance 50 Ohm 50 Ohm
Insulation Resistance 10 GOhm 10 GOhm
Physical
ROHS Compliant No No
Housing Material Brass Brass
Size - OD 0.16 in 4.1 mm
Size - Length 0.38 in 9.7 mm
Size - Height 0.40 in 10.2 mm
Weight .04 oz 1 gm

* All specifications are at room temperature unless otherwise specified.
