Model: 685A09

$185.00 USD
(Pricing valid in US only)

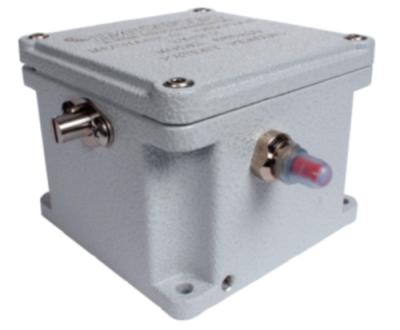

Mechanical vibration switch with linear adjust, 0 to 7 G's pk, 0 to 100 Hz

Patent Pending linear adjust design innovation provides better control over trip sensitivity

  • Measurement Range: 7 g pk (68.7 m/s² pk)
  • Cable Input: 3/4-14 NPT
  • Relay: 3A Form C 480 VAC
  • Electrical Connector: Screw Terminals

Add this product to my product comparison
Compare selected models ()

Measurement Range7 g pk68.7 m/s² pk
Frequency Range0 to 6000 cpm0 to 100 Hz
Relay3A Form C 480 VAC3A Form C 480 VAC
Relay(Contacts) (DPDT)Normally Open / ClosedNormally Open / Closed
Control Interface
Reset FunctionMomentary Pushbutton SwitchMomentary Pushbutton Switch
Temperature Range (Operating)-13 to 140 °F-25 to 60 °C
Enclosure RatingIP66IP66
Size - Width4.35 in110.5 mm
Size - Height3.30 in83.8 mm
Size - Depth4.35 in110.5 mm
Weight2.5 lb1132 gm
Sensing ElementMagnetMagnet
Housing MaterialAluminum AlloyAluminum Alloy
Electrical ConnectorScrew TerminalsScrew Terminals
Screw Terminal Wire Size24-14 AWG0.2 - 2.5 mm²
Cable Input3/4-14 NPT3/4-14 NPT
Mounting Hole Size0.25 in6.4 mm
Sensing GeometryInertial ElementInertial Element

All specifications are at room temperature unless otherwise specified.

Product Notes
No product notes
No Accessories
Optional Versions:
No optional versions
