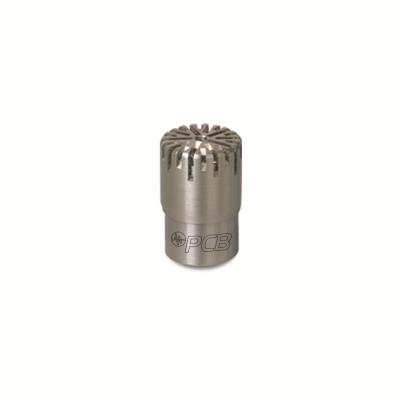

Model: 377C10

$825.00 USD
(Pricing valid in US only)


1/4" pressure, prepolarized condenser microphone typical sensitivity= 1.0 mV/Pa (+/-3 dB), 4 Hz to 70 kHz (+/-2 dB).

  • Nominal Microphone Diameter: 1/4"
  • Frequency Response Characteristic: Pressure
  • Frequency Range: (±2dB) 4 to 70000 Hz (4 to 70000 Hz)
  • Inherent Noise: <35 dB(A) re 20 µPa
  • Dynamic Range: (3% Distortion Limit) 174 dB re 20 µPa

Add this product to my product comparison
Compare selected models ()

Nominal Microphone Diameter1/4"1/4"
Frequency Response CharacteristicPressurePressure
Open Circuit Sensitivity (±3 dB)-60 dB re 1 V/Pa-60 dB re 1 V/Pa[2]
Open Circuit Sensitivity1.0 mV/Pa1.0 mV/Pa[2]
Frequency Range (±2 dB)4 to 70000 Hz4 to 70000 Hz
Lower Limiting Frequency (-3 dB)0.25 to 3.0 Hz0.25 to 3.0 Hz
Resonant Frequency (90° Phase Shift)65000 Hz65000 Hz[1]
Inherent Noise<35 dB(A) re 20 µPa<35 dB(A) re 20 µPa
Dynamic Range(3% Distortion Limit)174 dB re 20 µPa174 dB re 20 µPa[1]
Temperature Range (Operating)-40 to +248 °F-40 to +120 °C
Temperature Coefficient of Sensitivity (+14 to +122°F (-10 to +50°C))0.004 dB/°F0.007 dB/°C[1][2]
Static Pressure Coefficient-0.003 dB/kPa-0.003 dB/kPa[1][2]
Humidity Coefficient of Sensitivity (0 to 100%, non-condensing)±0.0012 dB/%RH±0.0012 dB/%RH[2]
Influence of Axial Vibration (0.1g (1 m/s²))66 dB re 20 µPa66 dB re 20 µPa[1]
Capacitance (Polarized)5 pF5 pF[1]
Polarization Voltage0 V0 V[3]
Housing MaterialStainless AlloyStainless Alloy
Mounting Thread0.2244 - 60 UNS5.7 mm - 60 UNS
Mounting Thread0.25 - 60 UNS6.35 mm - 60 UNS
Size - Diameter (with grid)0.28 in7.0 mm
Size - Diameter (without grid)0.25 in6.4 mm
Size - Height (with grid)0.41 in10.5 mm
Size - Height (without grid)0.36 in9.1 mm
Weight0.06 oz1.8 gm[1]

All specifications are at room temperature unless otherwise specified.


Product Notes
[1] Typical.
[2] re 250 Hz
[3] Prepolarized
[4] See PCB Declaration of Conformance PS167 for details.
