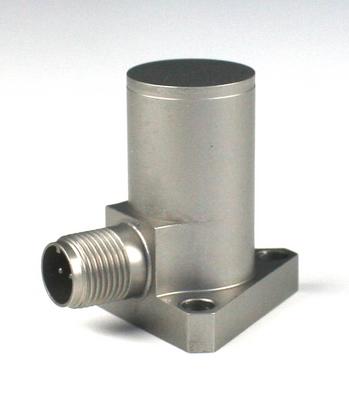

Model: 357C73

$1,235.00 USD
(Pricing valid in US only)

Click for lead times

Charge output accel., 100 pC/g, 500 g, to 2 kHz, 2-pin conn., 3-hole mount, to +900 F

Sensor can be paired with any one of the charge amplifiers in the Suggested Accessories section.  If paired with a Model Number 422M182, cable Model Numbers 013GNXXXGP and 045M19 should be used.  If paired with a Model Number EX682A40, cable Model Numbers 013GNXXXGP and 045M21 should be used.  Cable Model Number 013GNXXXGP is radiation-hardened for nuclear applications.

  • Sensitivity: (±20%) 100 pC/g (10.2 pC/(m/s²))
  • Measurement Range: ±300 g pk (±2943 m/s² pk)
  • Frequency Range: (±5%) 2000 Hz
  • Weight: 4.0 oz (115 gm)

Add this product to my product comparison
Compare selected models ()

Sensitivity (±20 %)100 pC/g10.2 pC/(m/s²)
Measurement Range±300 g pk±2943 m/s² pk
Frequency Range (±5 %)2000 Hz2000 Hz[3]
Resonant Frequency≥11 kHz≥11 kHz
Non-Linearity≤1 %≤1 %[1]
Transverse Sensitivity≤5 %≤5 %[2]
Overload Limit (Shock)±1000 g pk±9810 m/s² pk
Temperature Range-65 to +900 °F-54 to +482 °C
Temperature Range-65 to +900 °F-54 to +482 °C
Temperature ResponseSee Graph %/°FSee Graph %/°F[4]
Base Strain Sensitivity0.033 g/µε0.32 (m/s²)/µε[4]
Radiation Exposure Limit (Integrated Neutron Flux)1 E10 N/cm²1 E10 N/cm²
Radiation Exposure Limit (Integrated Gamma Flux)1 E8 rad1 E8 rad
Capacitance (Pin to Pin)1860 pF1860 pF[4]
Capacitance (Pin to Case)26 pF26 pF[4]
Capacitance (Unbalance Between Pins)≤2 pF≤2 pF
Insulation Resistance (Pin to Case 70° F)>100000000 Ohm>100000000 Ohm[4]
Insulation Resistance (Pin to Pin 70° F)>1000000000 Ohm>1000000000 Ohm
Insulation Resistance (Pin to Pin 900° F)>100 kohm>100 kohm
Sensing ElementCeramicCeramic
Size - Height1.57 in39.9 mm
Size - Diameter0.75 in19 mm
Weight4.0 oz115 gm[4]
Electrical Connector7/16-27 2-Pin7/16-27 2-Pin
Electrical Connection PositionSideSide
MountingThrough Holes (3)Through Holes (3)

All specifications are at room temperature unless otherwise specified.

Product Notes
[1] Zero-based, least-squares, straight line method.
[2] Transverse sensitivity is typically <= 3%.
[3] Low frequency response is determined by external signal conditioning electronics.
[4] Typical.
ACS-1NIST traceable frequency response (10 Hz to upper 5% point).(1)
081A99Cap Screw(3)
Optional Versions:
No optional versions
