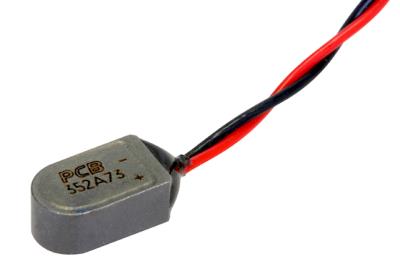

Model : 352A73 | ICP® Accelerometer

Click for lead times
Lead Time for 11-20 is 7 Wks
platinum stock products;miniature, lightweight (0.3 gm), ceramic shear icp® accel., 5 mv/g, 2 to 10k hz, titanium housing, 10-ft flexible, integral cable
$ 727.00 USD
(Pricing valid in US only!)

Platinum Stock Products;Miniature, lightweight (0.3 gm), ceramic shear ICP® accel., 5 mV/g, 2 to 10k Hz, titanium housing, 10-ft flexible, integral cable

  • Sensitivity: (±20%)5 mV/g ( 0.51 mV/(m/s²))
  • Measurement Range: ±1000 g pk ( ±9810 m/s² pk)
  • Broadband Resolution: 0.002 g rms ( 0.02 m/s² rms)
  • Frequency Range: (±5%)2.0 to 10000 Hz
  • Sensing Element: Ceramic
  • Weight: 0.01 oz ( 0.3 gm)

RELATED PRODUCTS



039A26
039A26

Removal tool (for Model 352C23)



Add to Cart for Quote
Add to Cart
070A02
070A02

Scope input adaptor (10-32 jack to BNC plug)



Add to Cart for Quote
Add to Cart
485B39
485B39

2-channel, USB-powered, ICP® sensor signal conditioner with USB digital output (24-bit A/D)



Add to Cart for Quote
Add to Cart
080A194
080A194

Triaxial mounting adaptor, anodized aluminum (for teardrop accelerometers)



Add to Cart for Quote
Add to Cart
English: SI:
Performance
Sensitivity (±20 %) 5 mV/g 0.51 mV/(m/s²)
Measurement Range ±1000 g pk ±9810 m/s² pk
Frequency Range (±5 %) 2.0 to 10000 Hz 2.0 to 10000 Hz
Frequency Range (±10 %) 1.5 to 25000 Hz 1.5 to 25000 Hz
Frequency Range (±3 dB) 0.7 to 40000 Hz 0.7 to 40000 Hz
Resonant Frequency ≥70 kHz ≥70 kHz
Broadband Resolution (1) 0.002 g rms 0.02 m/s² rms [ 2]
Non-Linearity ≤1 % ≤1 % [ 1]
Transverse Sensitivity ≤5 % ≤5 %
Environmental
Overload Limit (Shock) ±10000 g pk ±98000 m/s² pk
Temperature Range (Operating) -65 to +250 °F -54 to +121 °C
Temperature Response See Graph %/°F See Graph %/°F [ 2]
Electrical
Excitation Voltage 18 to 30 VDC 18 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤200 Ohm ≤200 Ohm
Output Bias Voltage 7 to 12 VDC 7 to 12 VDC
Discharge Time Constant 0.2 to 1.0 sec 0.2 to 1.0 sec
Settling Time (within 10% of bias) <3 sec <3 sec
Spectral Noise (1 Hz) 875 µg/√Hz 8580 (µm/sec2)/√Hz [ 2]
Spectral Noise (10 Hz) 150 µg/√Hz 1470 (µm/sec2)/√Hz [ 2]
Spectral Noise (100 Hz) 45 µg/√Hz 440 (µm/sec2)/√Hz [ 2]
Spectral Noise (1 kHz) 20 µg/√Hz 196 (µm/sec2)/√Hz [ 2]
Spectral Noise (10 kHz) 10 µg/√Hz 98 (µm/sec2)/√Hz [ 2]
Physical
Size - Height .11 in 2.8 mm
Size - Length 0.34 in 8.6 mm
Size - Width 0.16 in 4.1 mm
Weight (without cable) 0.01 oz 0.3 gm [ 2]
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Titanium Titanium
Sealing Hermetic Hermetic
Electrical Connector Solder pins with attached cable Solder pins with attached cable
Electrical Connection Position Side Side
Cable Termination 10-32 Coaxial Plug 10-32 Coaxial Plug
Cable Length 10 ft 3.05 m [ 3]
Mounting Adhesive Adhesive
* All specifications are at room temperature unless otherwise specified
.




Specification Notes


[ 1] Zero-based, least-squares, straight line method.
[ 2] Typical.
[ 3] Cable is made up of 1 ft. of 089 cable (32 AWG twisted pair) spliced to 9 ft. of 018 cable (coaxial).
[ 4] See PCB Declaration of Conformance PS023 for details.


Accessories


Supplied
039A26 Removal tool (for Model 352C23) 1
080A109 Petro Wax, one square, 1" x 1" x 0.25" 1
ACS-1 Single axis amplitude response calibration from 10 Hz to upper 5% frequency, NIST traceable 1
