Model : 352A59 | ICP® Accelerometer

Click for lead times

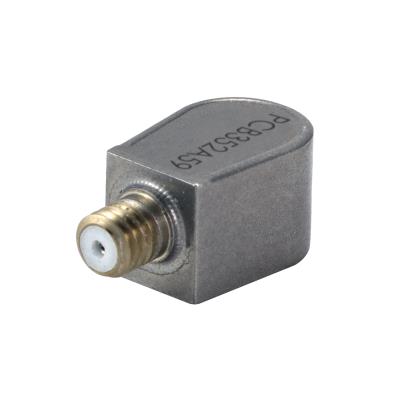

teardrop icp® accel; 10 mv/g; titanium housing; teds version 1.0; 10-ft detachable cable
$ 793.00 USD
(Pricing valid in US only!)

Teardrop ICP® accel; 10 mV/g; Titanium housing; TEDS version 1.0; 10-ft detachable cable

  • Sensitivity: (±15%)10 mV/g ( 1.0 mV/(m/s²))
  • Measurement Range: ±500 g pk ( ±4900 m/s² pk)
  • Broadband Resolution: .005 g rms ( .05 m/s² rms)
  • Frequency Range: (±5%)1.0 to 10000 Hz
  • Sensing Element: Ceramic
  • Weight: .03 oz ( .9 gm)

RELATED PRODUCTS



030B20
030B20

Miniature, low-noise, blue coaxial cable, 20-ft, M3 plug to 10-32 plug



Add to Cart for Quote
Add to Cart
480C02
480C02

Platinum Stock Products; 1-channel, battery-powered, ICP® sensor signal cond., unity gain, BNC input/output conn.



Add to Cart for Quote
Add to Cart
482C05
482C05

Platinum Stock Products; 4-channel, line-powered, ICP® sensor signal cond., unity gain, BNC input/output conn.



Add to Cart for Quote
Add to Cart
080A194
080A194

Triaxial mounting adaptor, anodized aluminum (for teardrop accelerometers)



Add to Cart for Quote
Add to Cart
English: SI:
Performance
Sensitivity (±15 %) 10 mV/g 1.0 mV/(m/s²)
Measurement Range ±500 g pk ±4900 m/s² pk
Frequency Range (±5 %) 1.0 to 10000 Hz 1.0 to 10000 Hz
Frequency Range (±10 %) 0.7 to 20000 Hz 0.7 to 20000 Hz
Frequency Range (±3 dB) 0.5 to 30000 Hz 0.5 to 30000 Hz
Resonant Frequency ≥65 kHz ≥65 kHz
Broadband Resolution (1) .005 g rms .05 m/s² rms [ 2]
Non-Linearity ≤1 % ≤1 % [ 1]
TEDS Compliant (Per IEEE 1451.4) Yes Yes [ 3]
Transverse Sensitivity ≤5 % ≤5 %
Environmental
Overload Limit (Shock) ±10000 g pk ±98000 m/s² pk
Temperature Range (Operating) -65 to +250 °F -54 to +121 °C
Temperature Response See Graph See Graph
Electrical
Excitation Voltage 18 to 30 VDC 18 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤50 Ohm ≤50 Ohm
Output Bias Voltage 7 to 12 VDC 7 to 12 VDC
Discharge Time Constant 0.9 to 3.5 sec 0.9 to 3.5 sec
Settling Time <3.5 sec <3.5 sec
Spectral Noise (1 Hz) 225 µg/√Hz 2205 (µm/sec2)/√Hz [ 2]
Spectral Noise (10 Hz) 50 µg/√Hz 490 (µm/sec2)/√Hz [ 2]
Spectral Noise (100 Hz) 10 µg/√Hz 98 (µm/sec2)/√Hz [ 2]
Spectral Noise (1 kHz) 8 µg/√Hz 78 (µm/sec2)/√Hz [ 2]
Spectral Noise (10 kHz) 5 µg/√Hz 49 (µm/sec2)/√Hz [ 2]
Physical
Size - Height .22 in 5.6 mm
Size - Length 0.48 in 12.2 mm
Size - Width 0.25 in 6.4 mm
Weight .03 oz .9 gm [ 2]
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Titanium Titanium
Sealing Hermetic Hermetic
Electrical Connector M3 Coaxial Jack M3 Coaxial Jack
Electrical Connection Position Side Side
Mounting Adhesive Adhesive
* All specifications are at room temperature unless otherwise specified
.




Specification Notes


[ 1] Zero-based, least-squares, straight line method.
[ 2] Typical.
[ 3] TEDS Capable Digital Memory and Communication, compliant with IEEE P1451.4
[ 2] Typical.
[ 4] See PCB Declaration of Conformance PS023 for details.


Accessories


Supplied
030B10 Miniature, low-noise, blue coaxial cable, 10-ft, M3 plug to 10-32 plug 1
039A38 One-piece removal tool (for Model 352A59) 1
080A109 Petro Wax, one square, 1" x 1" x 0.25" 1
ACS-1 Single axis amplitude response calibration from 10 Hz to upper 5% frequency, NIST traceable 1


Optional Versions


( TLA ) TEDS LMS International - Free Format


( TLB ) TEDS LMS International - Automotive Format


( TLC ) TEDS LMS International - Aeronautical Format
