triaxial mems shock accelerometer, 20kg, thru hole mount, integral 10-ft silicone cable terminating in pigtails

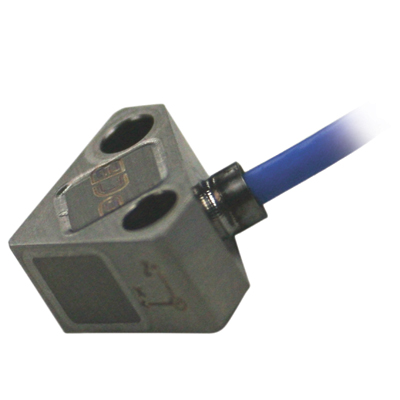

TRIAXIAL HIGH AMPLITUDE MEMS SHOCK ACCELEROMETER

Model 3503A1120KG

Retrieving Price...

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
More on the way Call for Lead Time
  • CE
  • IP

Triaxial MEMS Shock accelerometer, 20kG, thru hole mount, integral 10-ft silicone cable terminating in pigtails

  • Sensitivity: (±50%)0.010 mV/g (0.001 mV/(m/s²))
  • Measurement Range: ±20000 g (±196100 m/s² pk)
  • Frequency Range: (1dB)0 to 10000 Hz
  • Sensing Geometry: Full Active
  • Mounting: Through Holes (2)
  • Weight: 0.1 oz (2.83 gm)

Additional configurations:

Specification Notes

[1] Typical.
[2] Verified with test data provided on supplied calibration certificate.
[3] Sensitivity is proportional to excitation voltage, and at other excitation values, sensitivity can be predicted from the 10VDC calibrated value with a small (<~.5%) increase in uncertainty.
[1] Typical.
[4] -65 to +250 °F, ref. 75 °F (-54 to +121 °C, ref. 24 °C)
[5] Half-sine pulse duration, >= 20 µsec.
[1] Typical.
[6] Settling Time is the maximum time after power-up for the Offset Voltage to be within +/-2% of Measurement Range output of the final offset value. Mounting surface must be at thermal equilibrium.
[2] Verified with test data provided on supplied calibration certificate.
[7] Individually tested to ensure compliance with specified value.
[1] Typical.
[8] See PCB Declaration of Conformance PS153 for details.

English: SI:
Performance
Sensitivity (±50 %) (at 10 VDC excitation) 0.010 mV/g 0.001 mV/(m/s²) [2]
Sensitivity 0.001 mV/V/g 0.0001 mV/V/(m/s²) [3]
Measurement Range ±20000 g ±196100 m/s² pk
Frequency Range (1 dB) 0 to 10000 Hz 0 to 10000 Hz
Resonant Frequency >60 kHz >60 kHz
Damping Ratio 5 % Critical 5 % Critical [1]
Non-Linearity (per 10,000 g (98,100 m/s²)) ±1 % ±1 %
Transverse Sensitivity ≤3 % ≤3 %
Environmental
Overload Limit (Shock) ±60000 g pk ±588000 m/s² pk [5]
Overload Limit (Mechanical Stops) ≥30000 g ≥294200 m/s² pk
Temperature Range (Storage) -65 to 250 °F -54 to 121 °C
Temperature Range (Operating) -65 to 250 °F -54 to 121 °C
Temperature Coefficient of Sensitivity -0.11 %/°F -0.20 %/°C [1]
Zero g Offset Temperature Shift ±10 mV ±10 mV [4]
Base Strain Sensitivity 0.10 g/µε 0.98 (m/s²)/µε [1]
Electrical
Excitation Voltage (Maximum) 15.0 VDC 15.0 VDC
Current Consumption <12 mA <12 mA
Input Resistance (±700 Ohm) 2000 Ohm 2000 Ohm [1] [2]
Output Resistance (±2000 Ohm) 6000 Ohm 6000 Ohm [1] [2]
Offset Voltage ±40 mVDC ±40 mVDC [2]
Settling Time 0.01 sec 0.01 sec [6]
Electrical Isolation (Base) ≥10000000 Ohm ≥10000000 Ohm [7]
Physical
Sensing Element Piezoresistive MEMS Piezoresistive MEMS
Sensing Geometry Full Active Full Active
Housing Material Titanium Titanium
Sealing Epoxy Epoxy
Size - Height 0.25 in 6.35 mm
Size - Length 0.47 in 11.81 mm
Size - Width 0.47 in 11.81 mm
Weight (without cable) 0.1 oz 2.83 gm [1]
Electrical Connector Integral Cable Integral Cable
Electrical Connection Position Side Side
Cable Type 8-Cond., shielded, silcone jacket 8-Cond., shielded, silcone jacket
Cable Termination Pigtail Ends Pigtail Ends
Cable Length 10 ft 3.05 m
Mounting Through Holes (2) Through Holes (2)
Mounting Torque 6 to 8 in-lb 68 to 90 N-cm

* All specifications are at room temperature unless otherwise specified.

Accessories
Supplied
081B114 Mtg Hardware (3503 series), set of 2-each screw and washer 1
ACS-62T Calibration of High G triaxial PR Accelerometer, 10.0 VDC excitation 1
