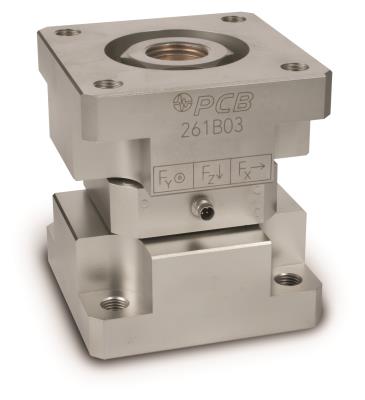

Model : 261B03 | 3-Component ICP® Force Sensor

Call for lead time
triax force link, icp®, 10k lb (fz), 4k lb (fx,y), 0.25 mv/lb (z), 1.25 mv/lb (x,y), ground isolated
Add to Cart for Quote

Triax force link, ICP®, 10k lb (Fz), 4k lb (Fx,y), 0.25 mV/lb (z), 1.25 mV/lb (x,y), ground isolated

  • Temperature Range: -65 to +250 °F ( -54 to +121 °C)
  • Electrical Connector: 4-Pin

RELATED PRODUCTS



010G20
010G20

4-conductor, shielded, FEP cable, 20-ft, 4-socket plug to (3) BNC plugs (labeled X,Y,Z)



Add to Cart for Quote
Add to Cart
482C24
482C24

4-channel, line powered, ICP® sensor signal cond., AC/DC coupling, gain x0.1 to x200



Add to Cart for Quote
Add to Cart
English: SI:
Performance
Sensitivity (±20 %) (Z Axis) 0.25 mV/lb 0.06 mV/N
Sensitivity (±20 %) (X or Y Axis) 1.25 mV/lb 0.28 mV/N
Measurement Range (Z Axis) 10000 lb 44.48 kN
Measurement Range (X or Y Axis) 4000 lb 17.79 kN
Maximum Force (Z Axis) 11000 lb 48.93 kN
Maximum Force (X or Y Axis) 4400 lb 19.57 kN
Maximum Moment (Z Axis) 240 ft-lb 325.4 Nm
Maximum Moment (X or Y Axis) 325 ft-lb 440.7 Nm
Broadband Resolution (x or y axis) 0.05 lb-rms 0.222 N-rms [ 2]
Broadband Resolution (x or y axis) 0.01 lb-rms 0.04 N-rms [ 2]
Resonant Frequency 11 kHz 11 kHz [ 2]
Low Frequency Response (-5 %) (z-axis) 0.01 Hz 0.01 Hz
Low Frequency Response (-5 %) (x or y axis) 0.001 Hz 0.001 Hz
Non-Linearity ≤1 % FS ≤1 % FS [ 1]
Cross Talk (between X and Y Axis) ±3 % ±3 %
Cross Talk (between (X or Y axis) and Z axis) ±5 % ±5 %
Environmental
Temperature Range -65 to +250 °F -54 to +121 °C
Electrical
Full Scale Output (Z Direction) ±2.5 VDC ±2.5 VDC
Full Scale Output (X and Y Direction) ±5 VDC ±5 VDC
Discharge Time Constant (z axis) ≥50 sec ≥50 sec
Discharge Time Constant (x or y axis) ≥500 sec ≥500 sec
Excitation Voltage (all channels) 20 to 30 VDC 20 to 30 VDC
Constant Current Excitation (all channels) 2 to 20 mA 2 to 20 mA
Output Impedance ≤100 Ohm ≤100 Ohm
Output Bias Voltage 8 to 14 VDC 8 to 14 VDC
Spectral Noise (1 Hz) 0.003 lb/√Hz 0.0134 N/√Hz
Spectral Noise (10 Hz) 0.001 lb/√Hz 0.00445 N/√Hz
Spectral Noise (100 Hz) 0.0004 lb/√Hz 0.00178 N/√Hz
Spectral Noise (1000 Hz) 0.0001 lb/√Hz 0.000445 N/√Hz
Spectral Noise (1 Hz) 0.02 lb/√Hz 0.089 N/√Hz
Spectral Noise (10 Hz) 0.005 lb/√Hz 0.0222 N/√Hz
Spectral Noise (100 Hz) 0.002 lb/√Hz 0.0089 N/√Hz
Spectral Noise (1000 Hz) 0.0005 lb/√Hz 0.00222 N/√Hz
Output Polarity Positive Positive
Electrical Isolation ≥100000000 Ohm ≥100000000 Ohm
Physical
Stiffness (Z Axis) 15.2 lb/µin 2.66 kN/µm [ 2]
Stiffness (X or Y Axis) 5.5 lb/µin 0.96 kN/µm [ 2]
Size - Height 3.54 in 89.9 mm
Size - Length 3.15 in 80.0 mm
Size - Width 3.15 in 80.0 mm
Weight 96.25 oz 2994 gm
Housing Material Stainless Steel Stainless Steel
Sealing Hermetic Hermetic
Electrical Connector 4-Pin 4-Pin
Electrical Connection Position Side Side
* All specifications are at room temperature unless otherwise specified
.




Specification Notes


[ 1] Zero-based, least-squares, straight line method.
[ 2] Typical.
[ 3] See PCB Declaration of Conformance PS023 for details.


Optional Versions


( W ) Water Resistant Cable
English SI
Electrical Connection Position Side
