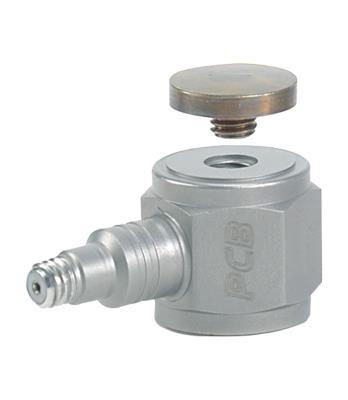

ICP® Force Sensor

Model 208C05

$479.00 USD

(Pricing valid only in the U.S.)

Add to Cart
Units in Stock Lead Times
15 Lead Time for 1-10 is 6 Wks
Lead Time for 11-20 is 8 Wks

Platinum Stock Products; Multi-purpose, ICP® force sensor, 5k lb comp., 500 lb tension, 1 mV/lb

  • Measurement Range: 5000 lb (22.24 kN)
  • Sensitivity: (±15%)1 mV/lb (224.82 mV/kN)
  • Low Frequency Response: (-5%)0.0003 Hz
  • Upper Frequency Limit: 36000 Hz
  • Temperature Range: -65 to +250 °F (-54 to +121 °C)
  • Mounting Thread: 10-32 Female

Specification Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Calculated from discharge time constant.
[4] Estimated using rigid body dynamics calculations.
[2] Typical.
[5] See PCB Declaration of Conformance PS023 for details.

English: SI:
Performance
Sensitivity (±15 %) 1 mV/lb 224.82 mV/kN
Measurement Range (Compression) 5000 lb 22.24 kN
Measurement Range (Tension) 500 lb 2.224 kN
Maximum Static Force (Compression) 8000 lb 35.59 kN
Maximum Static Force (Tension) 500 lb 2.224 kN
Broadband Resolution (1) 0.05 lb-rms 0.222 N-rms [2]
Low Frequency Response (-5 %) 0.0003 Hz 0.0003 Hz [3]
Upper Frequency Limit 36000 Hz 36000 Hz [4]
Non-Linearity ≤1 % FS ≤1 % FS [1]
Environmental
Temperature Range -65 to +250 °F -54 to +121 °C
Temperature Coefficient of Sensitivity ≤0.05 %/°F ≤0.09 %/°C
Electrical
Discharge Time Constant (at room temp) ≥2000 sec ≥2000 sec
Excitation Voltage 20 to 30 VDC 20 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤100 Ohm ≤100 Ohm
Output Bias Voltage 8 to 14 VDC 8 to 14 VDC
Spectral Noise (1 Hz) 0.00168 lb/√Hz 0.00750 N/√Hz [2]
Spectral Noise (10 Hz) 0.00112 lb/√Hz 0.00501 N√Hz [2]
Spectral Noise (100 Hz) 0.000459 lb/√Hz 0.00205 N/√Hz [2]
Spectral Noise (1000 Hz) 0.000133 lb/√Hz 0.000592 N/√Hz [2]
Output Polarity (Compression) Positive Positive
Physical
Stiffness 6 lb/µin 1.05 kN/µm [2]
Size - Hex 0.625 in 15.88 mm
Size - Height 0.625 in 15.88 mm
Size - Sensing Surface 0.500 in 12.7 mm
Weight 0.80 oz 22.7 gm
Housing Material Stainless Steel Stainless Steel
Sealing Hermetic Hermetic
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Electrical Connection Position Side Side
Mounting Thread 10-32 Female 10-32 Female

* All specifications are at room temperature unless otherwise specified.

Accessories
Supplied
080A81 Thread lock adhesive (for Series 200) 1
084A03 Impact cap, convex (for Series 208) 1
081B05 Mounting stud, 10-32 to 10-32, 0.275" long, BeCu w/shoulder 2
M081A62 Mounting stud, 10-32 to M6x1x 8.3 mm long, BeCu 2
