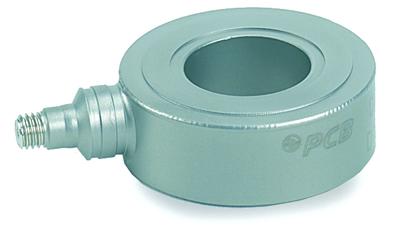

Model : 204C | Force Sensor, ICP®

Click for lead times
Lead Time for 1-2 is 10 Wks
icp® quartz force ring, 40k lb comp., 0.12 mv/lb
$ 975.00 USD
(Pricing valid in US only!)
Datasheet

ICP® quartz force ring, 40k lb comp., 0.12 mV/lb

  • Measurement Range: 40000 lb ( 177.92 kN)
  • Sensitivity: (±15%)0.12 mV/lb ( 27.0 mV/kN)
  • Low Frequency Response: (-5%)0.0003 Hz
  • Upper Frequency Limit: 55000 Hz
  • Temperature Range: -65 to +250 °F ( -54 to +121 °C)

RELATED PRODUCTS

410C01
410C01

ICP® sensor signal cond., 35mm DIN-rail mount, peak track hold and waveform analog output, AC/DC coupling, gain, setup configurable via USB or Ethernet communications.



Add to Cart for Quote
Add to Cart
002C10
002C10

General purpose coaxial cable, white FEP jacket, 10-ft, 10-32 plug to BNC plug



Add to Cart for Quote
Add to Cart
M204C
M204C

ICP® quartz force ring, 40k lb comp., 0.12 mV/lb, Metric



Add to Cart for Quote
Add to Cart
081A14
081A14

Mounting stud, 1/2-20 x 1.400", BeCu for Models 204C & 214B



Add to Cart for Quote
Add to Quote
082B04
082B04

Anti-friction washer for Models (M)204C & (M)214B



Add to Cart for Quote
Add to Quote
083B04
083B04

Pilot bushing for Models 204C & 214B



Add to Cart for Quote
Add to Quote
English: SI:
Performance
Sensitivity (±15 %) 0.12 mV/lb 27.0 mV/kN
Measurement Range (Compression) 40000 lb 177.92 kN
Maximum Static Force (Compression) 50000 lb 222.4 kN
Broadband Resolution (1) 0.80 lb-rms 3.6 N-rms [ 2]
Low Frequency Response (-5 %) 0.0003 Hz 0.0003 Hz [ 3]
Upper Frequency Limit 55000 Hz 55000 Hz [ 4]
Non-Linearity ≤1.5 % FS ≤1.5 % FS [ 1]
Environmental
Temperature Range -65 to +250 °F -54 to +121 °C
Temperature Coefficient of Sensitivity ≤0.08 %/°F ≤0.14 %/°C
Electrical
Discharge Time Constant (at room temp) ≥2000 sec ≥2000 sec
Excitation Voltage 20 to 30 VDC 20 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤100 Ohm ≤100 Ohm
Output Bias Voltage 8 to 14 VDC 8 to 14 VDC
Spectral Noise (1 Hz) 0.088 lb/√Hz 0.39 N/√Hz [ 2]
Spectral Noise (10 Hz) 0.025 lb/√Hz 0.11 N√Hz [ 2]
Spectral Noise (100 Hz) 0.0060 lb/√Hz 0.0266 N/√Hz [ 2]
Spectral Noise (1000 Hz) 0.0016 lb/√Hz 0.00719 N/√Hz [ 2]
Output Polarity (Compression) Positive Positive
Physical
Preload 8000 lb 35.585 kN
Stiffness 29 lb/µin 5 kN/µm [ 2]
Size - Diameter 1.34 in 34 mm
Size - Height 0.47 in 12 mm
Size - Bolt Diameter 0.625 in 16 mm
Size - ID (Hole Diameter) 0.660 in 16.76 mm
Size - OD (Sensor) 1.340 in 34 mm
Size - Sensing Surface 1.10 in 28 mm
Weight 2.0 oz 57 gm
Housing Material Stainless Steel Stainless Steel
Sealing Hermetic Hermetic
Electrical Connector 10-32 Coaxial Jack 10-32 Coaxial Jack
Electrical Connection Position Side Side
* All specifications are at room temperature unless otherwise specified
.




Specification Notes

[ 1] Zero-based, least-squares, straight line method.
[ 2] Typical.
[ 3] Calculated from discharge time constant.
[ 4] Estimated using rigid body dynamics calculations.
[ 2] Typical.
[ 5] See PCB Declaration of Conformance PS023 for details.


Accessories
Supplied
080A82 Assembly lubricant (for Series 201-207 force rings) 1
081A14 Mounting stud, 1/2-20 x 1.400", BeCu for Models 204C & 214B 1
082B04 Anti-friction washer for Models (M)204C & (M)214B 1
083B04 Pilot bushing for Models 204C & 214B 1


Optional Versions

( M ) Metric Mount
Accessories:
Supplied M083B04 Pilot Bushing 1
Supplied M081A14 Mounting Stud, M14 x 1.25 x 1.400, BeCu 1


( N ) Negative Output Polarity


( W ) Water Resistant Cable
English SI
Electrical Connector Sealed Cable
Electrical Connection Position Side
