Miniature Shaker 4.5lbf

Model 2004E

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock	Lead Times
More on the way	Call for Lead Time

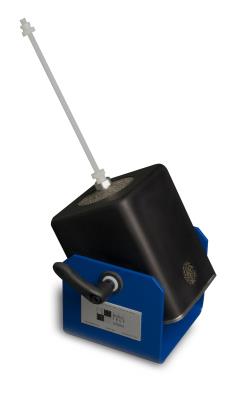

4.5 lb Miniature Shaker, 4.5 lbf rated sine force, 0.2" pk-pk stroke, weighs only 6 pounds and can support payloads up to 2 lbs. Includes trunnion mounting base and 2110G06 stinger kit.

Output Force, sine pk: 4.5 lbf (20 N)
Stroke Length: 0.2 in (5 mm)
Frequency Range: DC-11 kHz
Weight: 6 lb (2.72 kg)
Table Mounting: 10-32 thread

Specification Notes

[1] Load Dependent
[2] Please see systems ratings for additional specs

	English:	SI:
Performance
Output Force, sine pk (Natural Air Cooling)	4.5 lbf	20 N
Output Force, random RMS (Natural Air Cooling)	3 lbf	13.3 N
Output Force, shock pk	9 lbf	40 N
Stroke Length (Continuous pk-pk)	0.2 in	5 mm
Stroke Length (Between Stops)	0.35 in	9 mm
Frequency Range	DC-11 kHz	DC-11 kHz	[1]
Acceleration (No Load)	64 g pk	64 g pk	[1] [2]
Acceleration (0.1 lb (0.045 kg) load)	26 g pk	26 g pk	[1] [2]
Acceleration (1 lb (0.454 kg) load)	4.2 g pk	4.2 g pk	[1] [2]
Acceleration (2 lb (0.907 kg) load)	2.2 g pk	2.2 g pk	[1] [2]
Maximum Current	5 A	5 A
DC Resistance, armature (nominal)	1.5 Î©	1.5 Î©
Protection Features	Over-current (in-line fuse)	Over-current (in-line fuse)
Physical
Armature Weight	0.07 lb	0.032 kg
Suspension Stiffness	15 lbf/in	2.63 N/mm
Size - Height (Nominal)	5.3 in	135 mm
Size - Width (Nominal)	6.75 in	171 mm
Size - Depth (Nominal)	3.5 in	89 mm
Weight	6 lb	2.72 kg
Table Mounting	10-32 thread	10-32 thread
Electrical Connector (Integral cable to ring terminals)	7 ft	2.13 m
