Model : 352C22 | ICP® Accelerometer

Click for lead times
Lead Time for 1-10 is 3 Wks
Lead Time for 11-20 is 4 Wks
$ 535.00 USD
(Pricing valid in US only!)

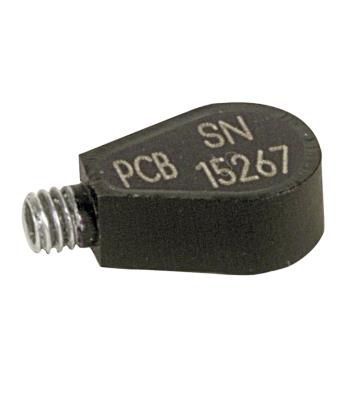

Platinum Stock Products; Miniature, lightweight (0.5 gm), ceramic shear ICP® accel., 10 mV/g, 1 to 10k Hz, 10-ft detachable, side exit cable

  • Sensitivity: (±15%)10 mV/g (1.0 mV/(m/s²))
  • Measurement Range: ±500 g pk (±4900 m/s² pk)
  • Broadband Resolution: 0.004 g rms (0.04 m/s² rms)
  • Frequency Range: (±5%)1.0 to 10000 Hz
  • Sensing Element: Ceramic
  • Weight: 0.017 oz (0.5 gm)

RELATED PRODUCTS



352a21

Platinum Stock Products; Miniature, lightweight (0.6 gm) ceramic shear ICP® accel., 10 mV/g, 1 to 10k Hz, titanium hsg, 10-ft detachable cable



Add to Cart for Quote
Add To Cart
352C22/NC

Platinum Stock Products; Miniature, lightweight (0.5 gm), ceramic shear ICP® accel., 10 mV/g, 1 to 10k Hz, no mating cable supplied



Add to Cart for Quote
Add To Cart
030a10

Miniature, low-noise, blue coaxial cable, 10-ft, 3-56 plug to 10-32 plug



Add to Cart for Quote
Add To Cart
039a27

One-piece removal tool (for Models 352A21, 352C22, 357A09 & 357C10 )



Add to Cart for Quote
Add To Cart
070A02

Scope input adaptor (10-32 jack to BNC plug)



Add to Cart for Quote
Add To Cart
080A194

Triaxial mounting adaptor, anodized aluminum (for teardrop accelerometers)



Add to Cart for Quote
Add To Quote
485B39

2-channel, USB-powered, ICP® sensor signal conditioner with USB digital output (24-bit A/D)



Add to Cart for Quote
Add To Cart
English: SI:
Performance
Sensitivity (±15 %) 10 mV/g 1.0 mV/(m/s²)
Measurement Range ±500 g pk ±4900 m/s² pk
Frequency Range (±5 %) 1.0 to 10000 Hz 1.0 to 10000 Hz
Frequency Range (±10 %) 0.7 to 13000 Hz 0.7 to 13000 Hz
Frequency Range (±3 dB) 0.3 to 20000 Hz 0.3 to 20000 Hz
Resonant Frequency ≥50 kHz ≥50 kHz
Broadband Resolution (1) 0.004 g rms 0.04 m/s² rms [2] [2]
Non-Linearity ≤1 % ≤1 % [1] [1]
Transverse Sensitivity ≤5 % ≤5 %
Sensitivity (±15 %) 10 mV/g 1.0 mV/(m/s²)
Measurement Range ±500 g pk ±4900 m/s² pk
Frequency Range (±5 %) 1.0 to 10000 Hz 1.0 to 10000 Hz
Frequency Range (±10 %) 0.7 to 13000 Hz 0.7 to 13000 Hz
Frequency Range (±3 dB) 0.3 to 20000 Hz 0.3 to 20000 Hz
Resonant Frequency ≥50 kHz ≥50 kHz
Broadband Resolution (1) 0.004 g rms 0.04 m/s² rms [2] [2]
Non-Linearity ≤1 % ≤1 % [1] [1]
Transverse Sensitivity ≤5 % ≤5 %
Environmental
Overload Limit (Shock) ±10000 g pk ±98000 m/s² pk
Temperature Range (Operating) -65 to +250 °F -54 to +121 °C
Temperature Response See Graph %/°F See Graph %/°F [2] [2]
Overload Limit (Shock) ±10000 g pk ±98000 m/s² pk
Temperature Range (Operating) -65 to +250 °F -54 to +121 °C
Temperature Response See Graph %/°F See Graph %/°F [2] [2]
Electrical
Excitation Voltage 18 to 30 VDC 18 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤300 Ohm ≤300 Ohm
Output Bias Voltage 7 to 12 VDC 7 to 12 VDC
Discharge Time Constant 1.0 to 3.5 sec 1.0 to 3.5 sec
Settling Time (within 10% of bias) <3 sec <3 sec
Spectral Noise (1 Hz) 800 µg/√Hz 7840 (µm/sec2)/√Hz [2] [2]
Spectral Noise (10 Hz) 250 µg/√Hz 2450 (µm/sec2)/√Hz [2] [2]
Spectral Noise (100 Hz) 60 µg/√Hz 590 (µm/sec2)/√Hz [2] [2]
Spectral Noise (1 kHz) 50 µg/√Hz 490 (µm/sec2)/√Hz [2] [2]
Spectral Noise (10 kHz) 40 µg/√Hz 392 (µm/sec2)/√Hz [2] [2]
Electrical Isolation (Base) >100000000 Ohm >100000000 Ohm
Excitation Voltage 18 to 30 VDC 18 to 30 VDC
Constant Current Excitation 2 to 20 mA 2 to 20 mA
Output Impedance ≤300 Ohm ≤300 Ohm
Output Bias Voltage 7 to 12 VDC 7 to 12 VDC
Discharge Time Constant 1.0 to 3.5 sec 1.0 to 3.5 sec
Settling Time (within 10% of bias) <3 sec <3 sec
Spectral Noise (1 Hz) 800 µg/√Hz 7840 (µm/sec2)/√Hz [2] [2]
Spectral Noise (10 Hz) 250 µg/√Hz 2450 (µm/sec2)/√Hz [2] [2]
Spectral Noise (100 Hz) 60 µg/√Hz 590 (µm/sec2)/√Hz [2] [2]
Spectral Noise (1 kHz) 50 µg/√Hz 490 (µm/sec2)/√Hz [2] [2]
Spectral Noise (10 kHz) 40 µg/√Hz 392 (µm/sec2)/√Hz [2] [2]
Electrical Isolation (Base) >100000000 Ohm >100000000 Ohm
Physical
Size - Height 0.14 in 3.6 mm
Weight 0.017 oz 0.5 gm [2] [2]
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Anodized Aluminum Anodized Aluminum
Sealing Epoxy Epoxy
Size - Length 0.45 in 11.4 mm
Size - Width 0.25 in 6.4 mm
Electrical Connector 3-56 Coaxial Jack 3-56 Coaxial Jack
Electrical Connection Position Side Side
Mounting Adhesive Adhesive
Size - Height 0.14 in 3.6 mm
Weight 0.017 oz 0.5 gm [2] [2]
Sensing Element Ceramic Ceramic
Sensing Geometry Shear Shear
Housing Material Anodized Aluminum Anodized Aluminum
Sealing Epoxy Epoxy
Size - Length 0.45 in 11.4 mm
Size - Width 0.25 in 6.4 mm
Electrical Connector 3-56 Coaxial Jack 3-56 Coaxial Jack
Electrical Connection Position Side Side
Mounting Adhesive Adhesive
* All specifications are at room temperature unless otherwise specified
.


Specification Notes


[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] See PCB Declaration of Conformance PS023 for details.
[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] See PCB Declaration of Conformance PS023 for details.


Accessories


Supplied
030A10 Miniature, low-noise, blue coaxial cable, 10-ft, 3-56 plug to 10-32 plug 1
039A27 One-piece removal tool (for Models 352A21, 352C22, 357A09 & 357C10 ) 1
080A109 Petro Wax, one square, 1" x 1" x 0.25" 1
ACS-1 Single axis amplitude response calibration from 10 Hz to upper 5% frequency, NIST traceable 1
Supplied
030A10 Miniature, low-noise, blue coaxial cable, 10-ft, 3-56 plug to 10-32 plug 1
039A27 One-piece removal tool (for Models 352A21, 352C22, 357A09 & 357C10 ) 1
080A109 Petro Wax, one square, 1" x 1" x 0.25" 1
ACS-1 Single axis amplitude response calibration from 10 Hz to upper 5% frequency, NIST traceable 1
