model 922 portable digital transducer instrument for measuring torque, torque and angle, or load measurement. click-wrench calc feature and multi-limit sets. complete with battery charger, data transfer software, and instruction manual

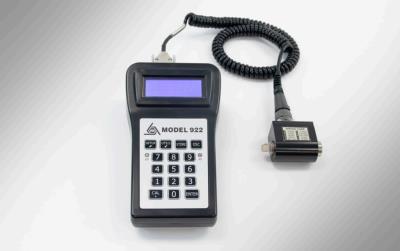

MODEL 922 PORTABLE DIGITAL PEAK METER

Model 080922-01000

Add to Quote
  • IP

Model 922 Portable Digital Transducer Instrument for measuring torque, torque and angle, or load measurement. Click-wrench calc feature and multi-limit sets. Complete with battery charger, data transfer software, and instruction manual

Replaces the Model 920 (080920-01000).


For more information on RS Technologies Model 922, please visit:
https://www.pcb.com/sensors-for-test-measurement/fastener-technology/fastener-assembly/portable-digital-transducer-instrument

    Specification Notes

    [1] FS - Full Scale.
    [2] See Outline Drawing 72890 for Complete Dimensions

    English: SI:
    Performance
    Resolution 21 bit 21 bit
    Non-Linearity 0.25 % FS 0.25 % FS [1]
    Frequency Response 10 kHz 10 kHz
    Environmental
    Temperature Range (operating ) 32 to 158 °F 0 to 70 °C
    Electrical
    Torque & Force Input Range ±2.5 mV/V, ±4.5 mV/V, ±5 VDC ±2.5 mV/V, ±4.5 mV/V, ±5 VDC
    Sensor Excitation (120 Ma ) (max) 5 VDC 5 VDC
    Peak Trap Circuit (positive voltage ) 7 µs reset time 7 µs reset time
    Peak Threshold software programmable software programmable
    Peak Reset Automatic Reset Automatic Reset
    Angle Input Type quadrature A/B track quadrature A/B track
    Angle Input (excitation ) 5 VDC 5 VDC
    Angle Input (frequency ) (max) 1 MHz 1 MHz
    Battery Indication low low
    Battery Life (maximum,continuous use) 8 hours 8 hours
    Battery Charge Time (max ) 3.5 hours 3.5 hours
    Shunt Calibration Rear Binding Posts Rear Binding Posts
    Physical
    Housing Material Molded ABS Plastic Molded ABS Plastic
    Size - Height 5.40 in 137.2 mm [2]
    Size - Width 9.0 in 228.6 mm [2]
    Size - Depth 3.18 in 80.8 mm [2]
    Weight 1.75 lb 0.8 kg
    Display Resolution 4 LINE X 20 CHAR. 4 LINE X 20 CHAR.
    Transducer Mating Conn. 15 pin D 15 pin D
    Auxillary Connectors USB Type B USB Type B

    * All specifications are at room temperature unless otherwise specified.

    Accessories
    Supplied
    100-17092-80 0
    100-17444-50 0
    7122R-04352A Precision Cal Resistor 43.575K Ohm 0
