Model : 039037-50022 | ROTARY TORQUE, W/AUTO ID

Click for lead times
rotary torque only transducer, w/auto-id, 200 lbf-in (22.6 nm), 3/8-inch square drive, 10-pin pt receptacle
Add to Cart for Quote

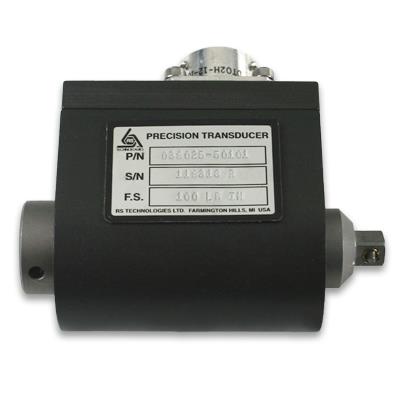

Rotary Torque Only Transducer, w/Auto-ID, 200 lbf-in (22.6 Nm), 3/8-inch Square Drive, 10-pin PT Receptacle

For more information on RS Technologies Fastener products and applications, please visit:
https://www.pcb.com/sensors-for-test-measurement/fastener-technology
and click the link for Fastener Testing or Fastener Assembly

  • Measurement Range: 200 lbf-in ( 22.6 Nm)
  • Sensitivity: 2.0 mV/V ( 2.0 mV/V)
  • Non-Linearity: <=0.25 % FS
  • Maximum Speed: 2500 RPM

RELATED PRODUCTS



080920-01000
080920-01000

Model 920 Portable Digital Peak Meter for torque, torque-angle or load measurement; Click-Wrench calc feature, w/battery charger, instruction manual & shoulder strap



Add to Cart for Quote
Add to Quote
097000-34445
097000-34445

Cable, Coiled, 3-ft, RS Instrument to 10-pin Transducers



Add to Cart for Quote
Add to Quote
English: SI:
Performance
Measurement Range (Full Scale Capacity) 200 lbf-in 22.6 Nm
Sensitivity (output at rated capacity) 2.0 mV/V 2.0 mV/V [ 3]
Non-Linearity ≤0.25 % FS ≤0.25 % FS [ 1]
Hysteresis ≤0.25 % FS ≤0.25 % FS [ 1]
Non-Repeatability ≤0.05 % FS ≤0.05 % FS [ 1]
Interchangeabilty ≤0.30 % FS ≤0.30 % FS [ 1] [ 2]
Environmental
Overload Limit 300 lbf-in 33.9 Nm
Temperature Range (Operating) 0 to +200 °F -18 to +93 °C
Temperature Range (Compensated) +70 to +150 °F +21 to +66 °C
Temperature Effect on Output (Maximum) ±0.002 %Reading/°F ±0.0018 %Reading/°C [ 4]
Temperature Effect on Zero Balance (Maximum) ±0.002 %FS/°F ±0.0018 %FS/°C [ 4]
Electrical
Bridge Resistance 350 Ohm 350 Ohm
Excitation Voltage 10 VDC 10 VDC [ 5]
Insulation Resistance ≥5 GOhm ≥5 GOhm
Zero Balance ≤2 % FS ≤2 % FS [ 1]
Shunt Calibration ≤0.25 % FS ≤0.25 % FS [ 1] [ 6]
Auto ID TTL Proprietary TTL Proprietary
Physical
Size - Shaft Length 3.23 in 82.0 mm [ 8]
Size - Housing Length 2.30 in 58.4 mm [ 8]
Size - Housing Height 2.00 in 50.8 mm [ 8]
Weight .85 lb 386 gm
Mounting 3/8 inch Sq Drive 9.52 mm Sq Drive [ 7]
Sensing Element Strain Gage Strain Gage
Housing Material Aluminum Aluminum
Shaft Material Steel Steel
Electrical Connector PT02H-12-10P PT02H-12-10P
Maximum Speed 2500 RPM 2500 RPM
* All specifications are at room temperature unless otherwise specified
.




Specification Notes


[ 1] FS - Full Scale.
[ 2] Matched for mV/V and shunt calibration.
[ 3] Matched to ±0.25% F.S.
[ 4] Over compensated temperature range.
[ 1] FS - Full Scale.
[ 5] Calibrated at 10 VDC, usable 5 to 20 VDC or VAC RMS.
[ 6] Matched with 43.575 kOhm Precision Resistor.
[ 7] Per ANSI B107.4 Specifications
[ 8] See Outline Drawing LT38037 for Complete Dimensions
[ 9] See PCB Declaration of Conformance PS119 for details.


Accessories


Optional
080962-01000 Model 962 Portable Transient Recorder, complete with FastPlot2 data transfer software, 8GB USB Memory Drive, USB cable for data upload/download, battery charger, and carrying case 1
097000-34445 Cable, Coiled, 3-ft, RS Instrument to 10-pin Transducers 1
4242R-000630 1
Supplied
7122R-04352A Precision Cal Resistor 43.575K Ohm 1
