MODAL HAMMER WITH TEDS

Retrieving Price...

(Pricing valid only in the U.S.)

Units in Stock	Lead Times
More on the way	Call for Lead Time

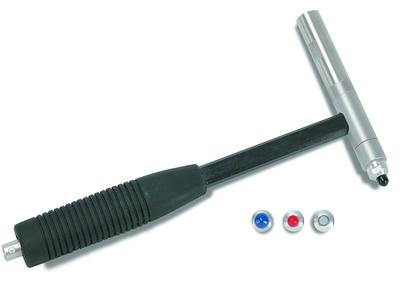

Modally Tuned® Impulse Hammer w/force sensor and tips, 0 to 100 lbf, 50 mV/lbf (11.2 mV/N), TEDS 1.0

[1] Typical.
[2] See PCB Declaration of Conformance PS068 for details.

	English:	SI:
Performance
Sensitivity (±15 %)	50 mV/lbf	11.2 mV/N
Measurement Range	±100 lbf pk	±444 N pk
Resonant Frequency	≥22 kHz	≥22 kHz
Non-Linearity	≤1 %	≤1 %
Electrical
Excitation Voltage	20 to 30 VDC	20 to 30 VDC
Constant Current Excitation	2 to 20 mA	2 to 20 mA
Output Impedance	<100 Ohm	<100 Ohm	[1]
Output Bias Voltage	8 to 14 VDC	8 to 14 VDC
Discharge Time Constant	≥500 sec	≥500 sec	[1]
Physical
Sensing Element	Quartz	Quartz
Sealing	Epoxy	Epoxy
Hammer Mass	0.34 lb	0.16 kg
Head Diameter	0.62 in	1.57 cm
Tip Diameter	0.25 in	0.63 cm
Hammer Length	8.5 in	21.6 cm
Electrical Connection Position	Bottom of Handle	Bottom of Handle
Extender Mass Weight	2.6 oz	75 gm
Electrical Connector	BNC Jack	BNC Jack

* All specifications are at room temperature unless otherwise specified.


Supplied
084A08	Extender mass, stainless steel, 0.615" dia. x 2.00", 2.6 oz (75 gm), for Models 086C02, 086C03, 086C04	1
084B03	Hard, stainless steel, 10-32 thread tip, 3.0 gm (for Models 086C01, 086C02, 086C03, 086C04, 086D05)	1
084B04	Medium, white, 10-32 thread tip, 2.5 gm (for Models 086C01, 086C02, 086C03, 086C04, 086D05)	1
HCS-2	Calibration of Series 086B to 086D instrumented hammers only	1
081B05	Mounting stud, 10-32 to 10-32, 0.275" long, BeCu w/shoulder	2
084C05	Soft, black, 10-32 thread tip, 2.3 gm (for Models 086C01, 086C02, 086C03, 086C04, 086D05)	2
084C11	Super soft, red, 10-32 thread tip, 2.3 gm (for Models 086C01, 086C02, 086C03, 086C04)	2
085A10	Protective cap (for medium hammer tip)	2
